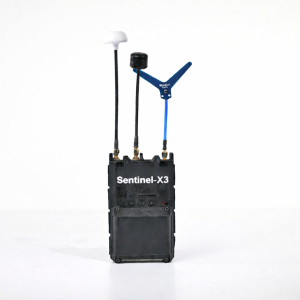

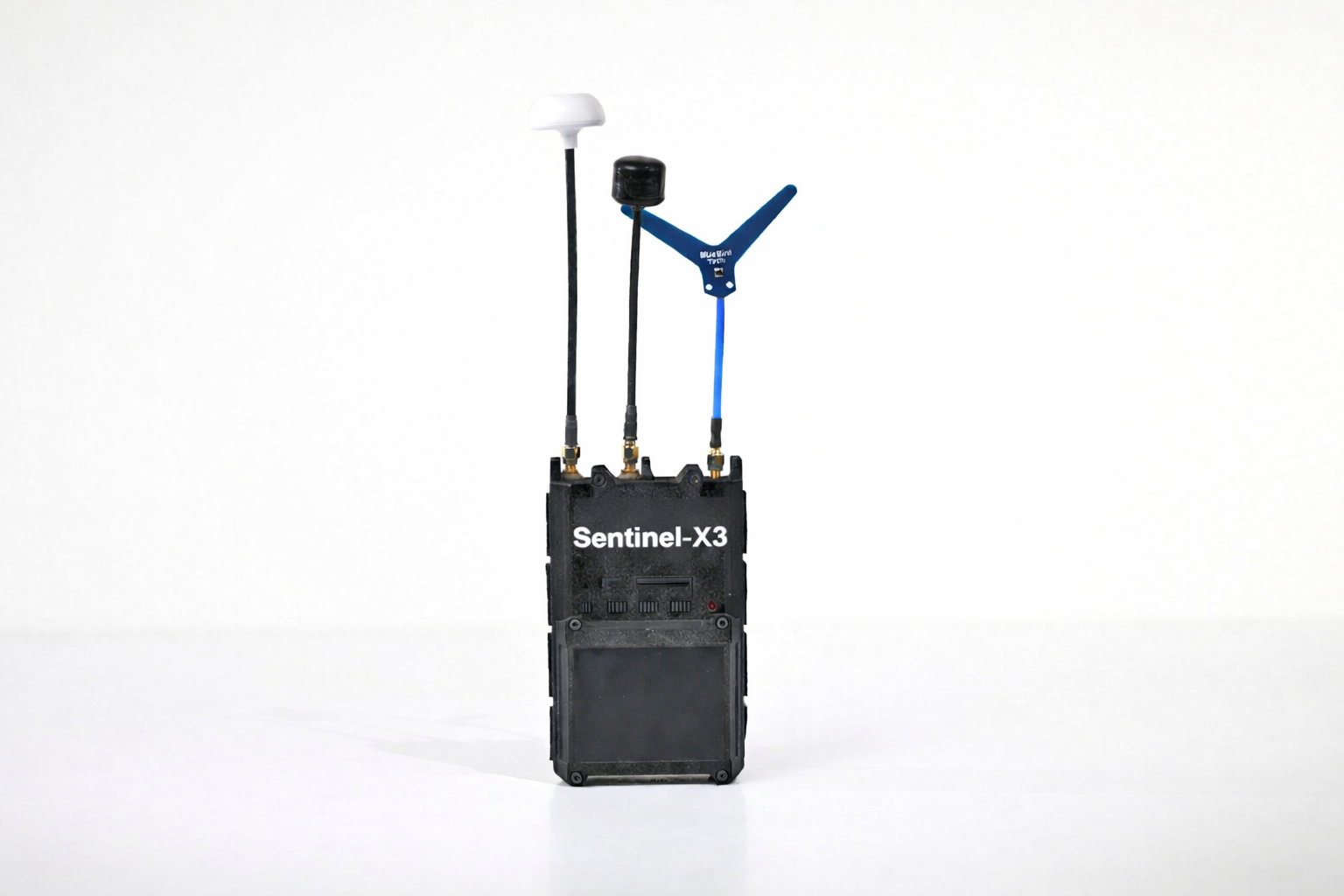

FlySpark Sentinel-X3 Multi-Band FPV Drone Signal Detector (1.2 / 3.3 / 5.8 GHz)
₹168,000.00
FlySpark Sentinel-X3 is a portable multi-band FPV drone signal detection system engineered for identifying and intercepting analog video transmissions used by FPV drones.
The device continuously scans across three primary drone communication bands — 1.2 GHz, 3.3 GHz, and 5.8 GHz — enabling operators to quickly detect active drone signals in the surrounding airspace.
Sentinel-X3 performs high-speed automatic RF scanning across a wide spectrum range and completes a full scan within 4–8 seconds. When a drone signal is detected, the system provides visual and audio alerts and allows operators to monitor intercepted video transmissions directly on the integrated display.
The device is designed for rapid deployment and requires no manual configuration. All scanning algorithms are pre-configured, allowing the unit to begin monitoring immediately after power-on.
FlySpark Sentinel-X3 is suitable for security operations, counter-drone monitoring, tactical surveillance, and electronic intelligence applications where early drone detection is critical.
echnical characteristics:
| Characteristic | Value |
|---|---|
| Detection (900-1800 MHz) | Up to 4000 m* |
| Detection (2870-4080 MHz) | Up to 4000 m* |
| Detection (4860-6060 MHz) | Up to 4000 m* |
| Scanning speed | 4-8 seconds (full frequency range) |
| Power supply | 8.4V (2S) |
| Battery capacity | 4500 mAh (up to 6 hours of operation) |
| Width | Up to 95 mm |
| Length | Up to 158 mm (excluding antennas) |
| Weight | Up to 650 g |
| Casing material | PETG plastic |
| Small screen | For displaying system information |
| Large screen | For displaying intercepted video signals |
| Casing protection | IP54 |
Notes:
* At a video transmitter power of 3W and no obstructions in the Fresnel zone.
* Maximum detection range depends on the type of antennas used.
Information Display
Used for displaying system status, scanning activity, battery level, and operational information.
Video Monitoring Display
Displays intercepted FPV drone video transmissions in real time for immediate situational awareness.
Package Contents
1 × FlySpark Sentinel-X3 Drone Signal Detector
3 × Multi-band antennas
1 × Charging cable
1 × User manual
Applications
Counter-UAS monitoring systems
Security and defense operations
Military and tactical surveillance
Border monitoring and protection
Infrastructure and facility security
Electronic intelligence operations
Drone signal monitoring for restricted airspace
FlySpark Sentinel-X3 is a portable multi-band FPV drone signal detector designed to identify and intercept analog drone video transmissions across 1.2 GHz, 3.3 GHz, and 5.8 GHz frequency bands with high-speed automatic spectrum scanning and real-time monitoring.Key Features• Multi-band FPV drone signal detection (1.2 GHz / 3.3 GHz / 5.8 GHz)• High-speed automatic spectrum scanning• Complete RF band scan within 4–8 seconds• Real-time interception of analog FPV video signals• Visual and audio alerts for detected drone transmissions• Advanced auto-calibration of signal sensitivity• False alarm reduction using signal filtering algorithms• Manual VRX monitoring mode with adjustable frequency tuning• Support for inverted or scrambled analog video signals• External high-gain antenna compatibility via SMA connectors• Portable compact design for field deployment• Built-in battery system for extended operation
