FlySpark GaN 100–900 MHz 100 W RF Jammer Module (Authorized)

₹49,999.00

Add to Wishlist

Add to Compare

The FlySpark N-Shield 100–900 MHz (100 W) is a GaN-based RF suppression stage optimized for sub-GHz nodes in layered Counter-UAS systems. Sub-GHz links travel far; this module delivers high power density with GaN efficiency and fast protection trips to survive heat and mismatch. To avoid fake “flat 100 W everywhere” claims, we tune to your target sub-band at order. For broader coverage in one box, choose the dual-path build with a power combiner (POA). Use compliant antennas and a lawful spectrum plan.

Key features

Band window: 100–900 MHz (factory-tuned sub-band on order)
Power: up to 100 W conducted (band-dependent, duty-cycle limited)
Protections: Thermal, over-current, VSWR
I/O: SMA-F RF (N-F optional), DC pigtail (12–24 V)
Form factor: Shielded aluminum, fan-ready; vehicle/rooftop/backpack

Tech specs (fill real numbers before publishing)

Example configs: 150–174 MHz, 300–380 MHz, 400–470 MHz, 860–880 MHz, 902–928 MHz
Output control: 0–100% (stepped)
Input power: 12–24 V DC, peak draw ≈ (output/efficiency) W → insert your value
Control header: Enable toggle; optional UART/I²C
Cooling: Mandatory active cooling (heatsink + fan); thermal trip at <temp> °C
Enclosure: <L×W×H mm>, <weight g>
Operating temp: −10 °C to +55 °C

Legal & compliance

Supplied only to Govt/Defence/LEA/licensed integrators in India. KYC + End-Use mandatory; WPC/DoT and export controls apply. End-user must ensure lawful deployment and spectrum coordination. No civilian sale.

In the box

100–900 MHz 100 W GaN module (factory-tuned)
DC pigtail
Quick-start safety sheet

Image ALT (use on upload)

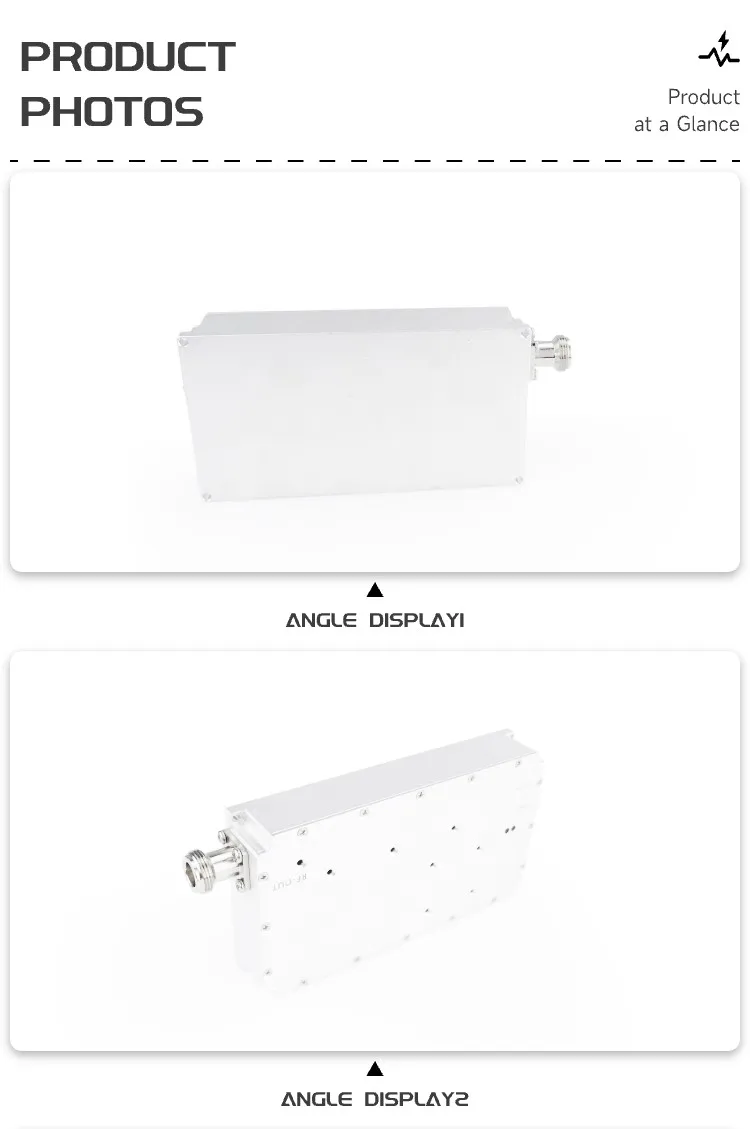

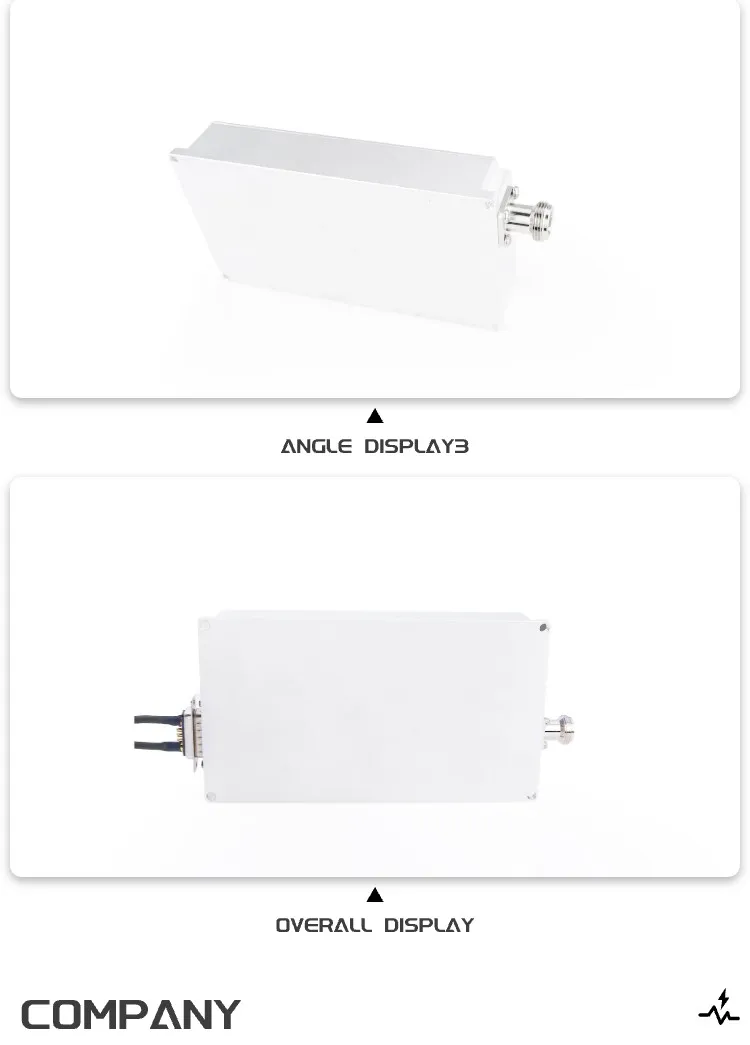

FlySpark 100–900MHz 100W GaN RF jammer module – shielded aluminum, SMA port
N-Shield 100W sub-GHz RF suppression module for authorized Counter-UAS integrators

Close-up of SMA-F port and fasteners on FlySpark RF module5

Item name	Technical parameters
Working frequency	100-6000MHz (Customizable frequency)
Saturated output power	50±1dBm
Gain	50±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR	≤1.5
Gain temperature stability	≤±1.5dB
Working voltage	DC+28V
Working current	≤8A
Powersupplymonitoring interface	Power supply: power line Red: power positive, black: power negative, white: power amplifier enabled
Output RF port	N
Dimensions	1408025mm

Reviews

There are no reviews yet.

Be the first to review “FlySpark GaN 100–900 MHz 100 W RF Jammer Module (Authorized)”

100–900 MHz • 100 W GaN RF jammer module for authorized Counter-UAS integrators and licensed labs. Covers key sub-GHz control bands (e.g., 150–174, 300–380, 400–470, 860–880, 902–928 MHz families) via factory tuning for real, repeatable performance. Shielded aluminum body, SMA-F RF port (N-F optional), 12–24 V DC input, and thermal/over-current/VSWR protection. Optional dual-path (100–400 + 400–900 MHz) combiner version available on project order.
Restricted sale: KYC + End-Use Certificate required; civilian use prohibited under Indian law.
