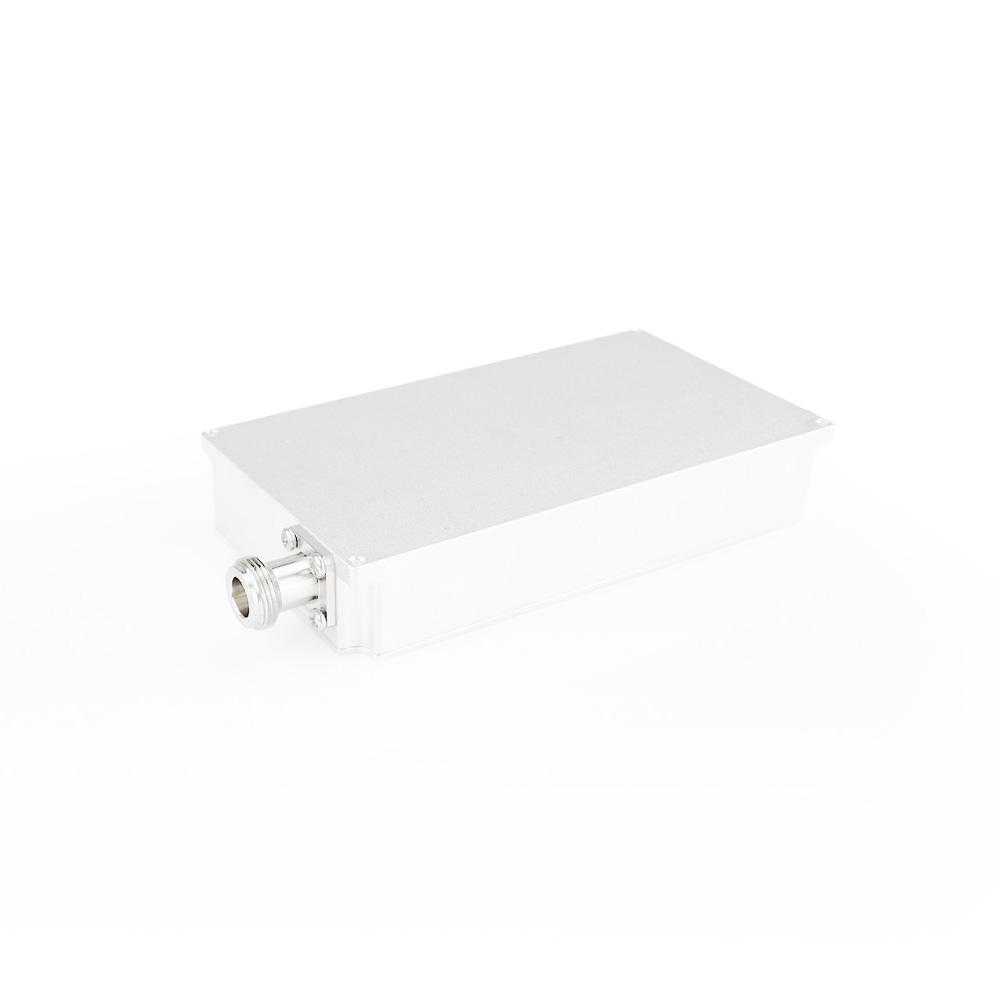

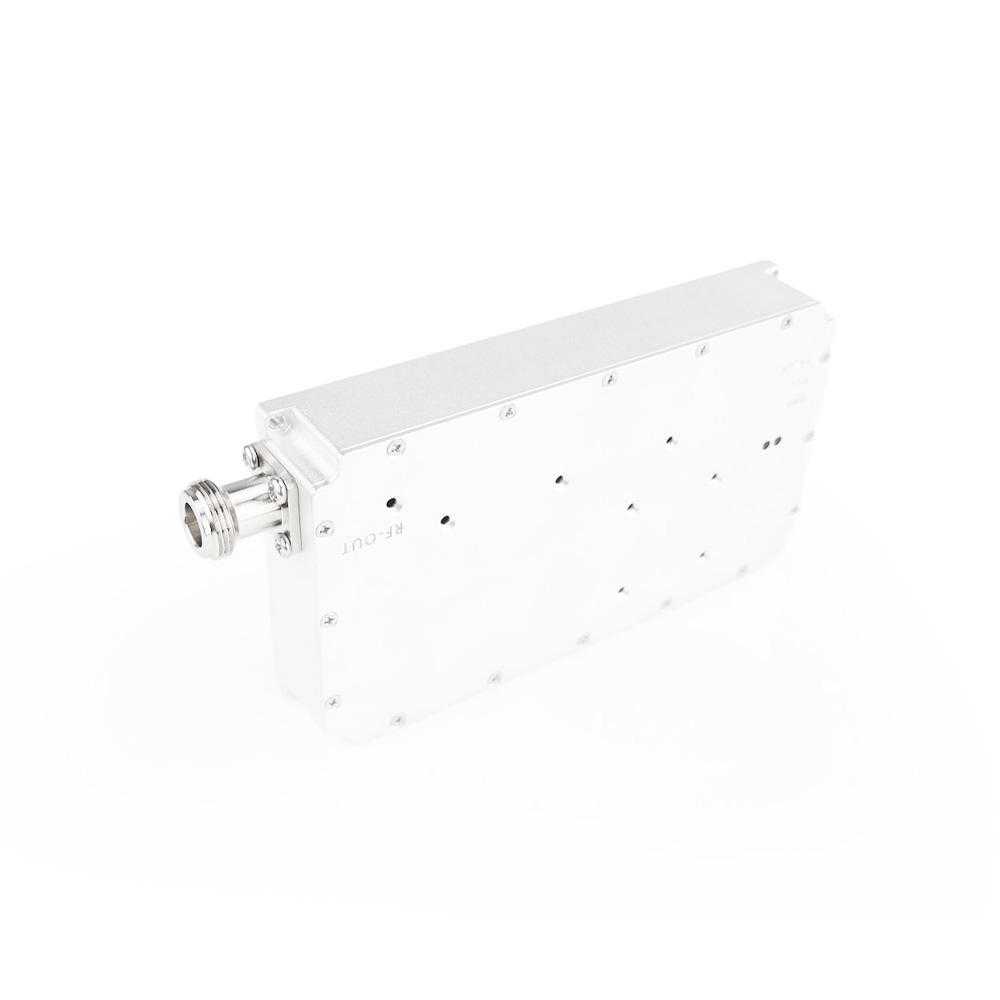

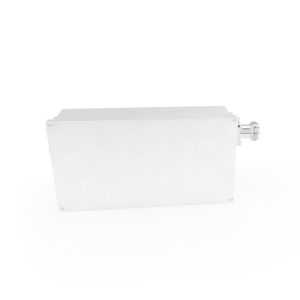

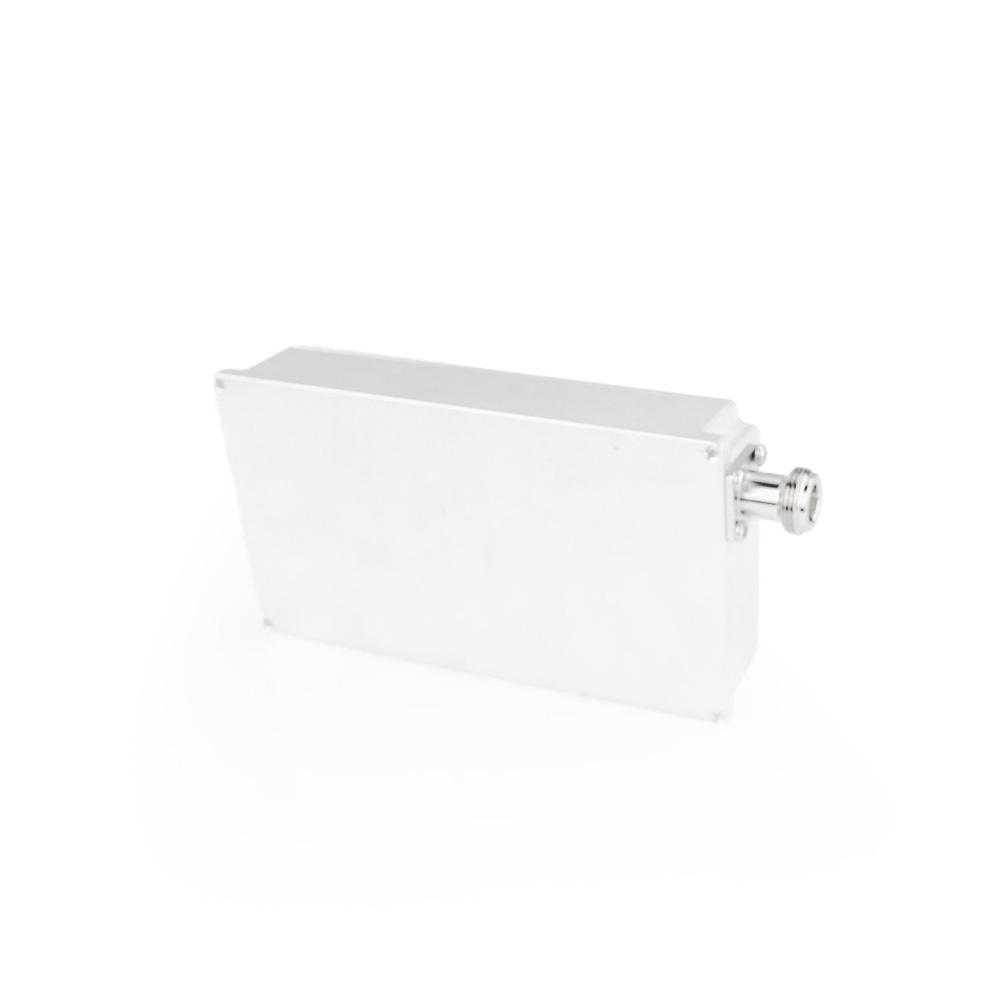

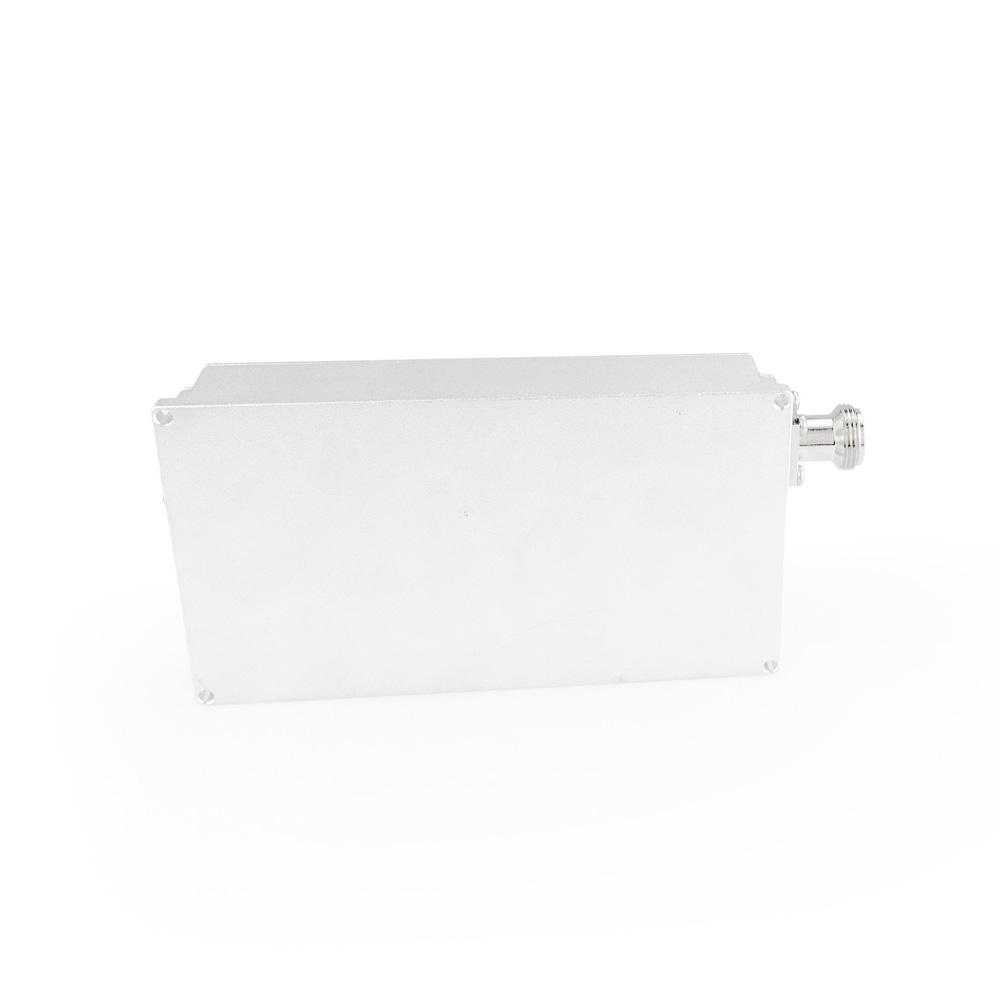

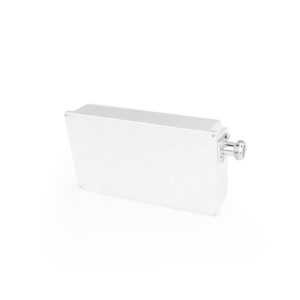

The FlySpark N-Shield 1.0–5.8 GHz (200 W) is a high-power GaN RF suppression stage for rooftop, vehicle, and backpack C-UAS nodes. To avoid fake “flat 200 W everywhere” claims, we ship band-tuned builds (examples below). If you need wider coverage in one box, choose the dual-path (1.0–2.4 + 5.2–5.8) or tri-path option with a combiner (POA). Use compliant antennas and a lawful spectrum plan.

Key features

• Band window: 1.0–5.8 GHz (factory-tuned sub-band on order)

• Power: up to 200 W conducted (band-dependent, duty-cycle-limited)

• Protections: Thermal trip, over-current, VSWR safeguard

• I/O: SMA-F RF (N-F optional), DC flying leads (12–24 V)

• Chassis: Shielded aluminum, fan-ready; vehicle/rooftop/backpack installs

Example configurations (pick at order)

• 1.05–1.35 GHz, 1.20–1.60 GHz, 1.60–2.20 GHz, 2.10–2.40 GHz

• 5.20–5.50 GHz, 5.50–5.85/5.90 GHz

• Dual-path: 1.0–2.4 + 5.2–5.8 (with combiner)

• Tri-path: 1.0–1.6 + 1.6–2.4 + 5.5–5.9 (with combiner)

Tech specs (fill real numbers before publishing)

• Output control: 0–100% (stepped)

• Input power: 12–24 V DC, peak draw ≈ output/efficiency W → insert your value

• Control header: Enable toggle; optional UART/I²C telemetry

• Cooling: Mandatory active cooling (heatsink + high-CFM fan); thermal trip at <temp> °C

• Enclosure: <L×W×H mm>, <weight g>; Operating temp −10 °C to +55 °C

Legal & compliance

Supplied only to Govt/Defence/LEA/licensed integrators in India. KYC + End-Use mandatory; WPC/DoT and export controls apply. End-user must ensure lawful deployment and spectrum coordination. No civilian sale.

In the box

• 1.0–5.8 GHz 200 W GaN module (factory-tuned / multi-path as ordered)

• DC pigtail

• Quick-start safety sheet
