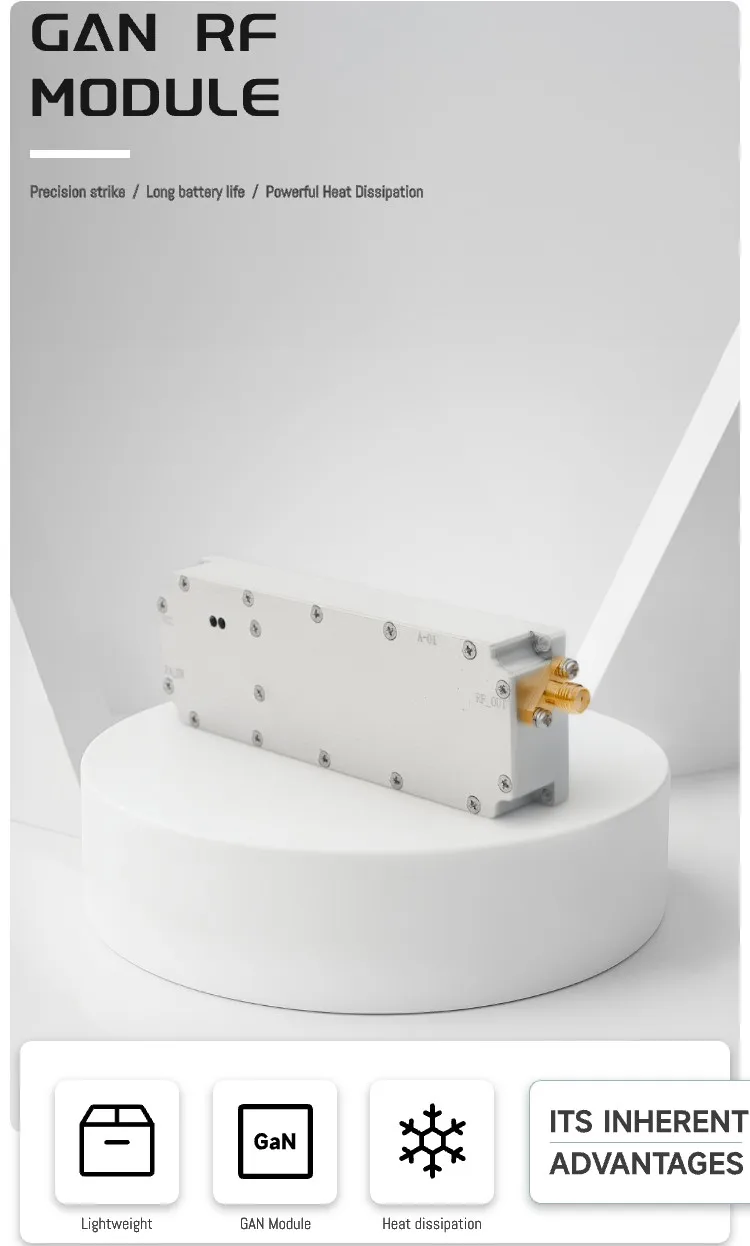

The N-Shield 1.0–2.4 GHz (50 W) module fills the mid-band gap for licensed C-UAS builds. GaN PAs deliver high power density and efficiency; protection logic catches thermal and mismatch faults fast. The enclosure is serviceable and fan-ready for continuous duty.
Why factory-tuned (read this)
Wide 1.0–2.4 GHz coverage at a flat 50 W isn’t physics-friendly with one PA chain. We supply a band-tuned module for real, repeatable performance. Need broader coverage? Choose the dual-path option (1.0–1.6 + 1.6–2.4 GHz) with power combiner (POA).
Key features
Band window: any sub-band within 1.0–2.4 GHz (specify at order)
Power: up to 50 W conducted (band-dependent)
Protections: Thermal, over-current, VSWR
I/O: SMA-F RF, DC pigtail (12–24 V)
Form factor: Shielded aluminum, fan-ready; vehicle/rooftop/backpack
Tech specs (fill when final)
Configured band (examples): 1.05–1.40 GHz / 1.20–1.60 GHz / 1.60–2.20 GHz / 2.10–2.40 GHz
Output control: 0–100% (stepped)
Input power: 12–24 V DC, peak <xx W, idle <xx W
Connectors: RF SMA-F (N-F optional), DC flying leads
Control header: Enable toggle; optional UART/I²C
Cooling: Active fan; thermal trip at <temp> °C
Enclosure: Aluminum, <L×W×H mm>, <weight g>
Operating temp: −10 °C to +55 °C
Legal & compliance (keep)
Supplied only to Govt/Defence/LEA/licensed integrators in India
KYC + End-Use Certificate mandatory; WPC/DoT/export controls apply
End-user responsible for lawful deployment and spectrum coordination
No civilian sale
In the box
1.0–2.4 GHz 50 W GaN module (band-tuned)
DC pigtail
Quick-start safety sheet
Product Parameters
Item name Technical parameters Working frequency 100-6000MHz / 6000-7200MHz(Customizable frequency) Saturated output power 47±1dBm Gain 47±2dB In-band fluctuation ≤2.0dB Out-of-band spurious 9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHzInput VSWR ≤1.5 Gain temperature stability ≤±1.5dB Working voltage DC+28V Working current ≤3A-3.5A Powersupplymonitoring interface Power supply: power line
Red: power positive, black: power negative, white: power amplifier enabledOutput RF port SMA Dimensions 111.7*37.3*19.5mm – 100-6000MHz / 112*48*20mm 6000-7200MHz
FlySpark GaN 1.0–2.4 GHz 50 W is a sub-GHz/ISM RF jammer module for authorized Counter-UAS integrators and licensed labs. To keep performance honest, the module is factory-tuned to your target sub-band (e.g., 1.0–1.6 GHz or 1.6–2.4 GHz). Shielded aluminum body, SMA-F RF, 12–24 V DC input, and thermal/VSWR protection for field reliability. Optional dual-path version (two bands with combiner) available on project order. Pair with compliant antennas and spectrum plans.
Restricted sale: KYC + End-Use required; civilian use prohibited under Indian law.
Restricted sale: KYC + End-Use required; civilian use prohibited under Indian law.
