The FlySpark 50KM Long-Range FPV System is a professional-grade aerial transmission and control package designed for fixed-wing drones and UAVs with wingspans above 1500mm. Developed using MyFlyDream’s advanced FPV and telemetry platform, this system enables ultra-long-range flights up to 50 kilometers, ensuring exceptional stability, image clarity, and control precision.

Each FPV combo is pre-tested, pre-wired, and optimized by FlySpark engineers to ensure plug-and-play compatibility with popular UAV systems. The setup includes high-power transmitters, current sensors, autopilot modules, diversity receivers, and camera units — all fine-tuned for stable long-distance communication and reliable video feedback.

With free custom wiring and soldering service, you can rely on FlySpark’s technical team to deliver a ready-to-fly, high-performance long-range FPV system tailored to your requirements.

✅ Key Highlights

1. True 50KM Flight Capability: MyFlyDream long-range system ensures stable control and video transmission up to 50km under optimal conditions.

2. Plug & Play Setup: All components are pre-soldered and pre-tested with XT60 connectors, regulators, and matched FPV modules.

3. Custom Engineering Support: Free soldering and wiring for ESCs, current sensors, and flight controllers.

4. Flexible Configuration: Three ready-made combos (Combo 1, Combo 2, Combo 3) to fit your drone build requirements.

5. Professional Components: Includes RunCam cameras, AOMWAY transmitters, diversity receivers, and MyFlyDream autopilot modules.

6. Optional Upgrades: Choose between 50A or 100A current sensors, 6- or 12-channel antenna trackers, and optional Panda autopilot ground stations.

7. Field-Tested Stability: Each combo has been verified on fixed-wing aircraft with proven performance in long-range conditions.

Package Options

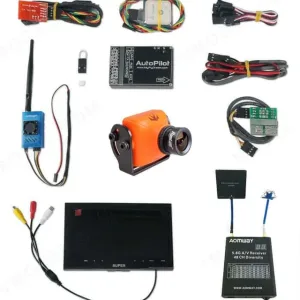

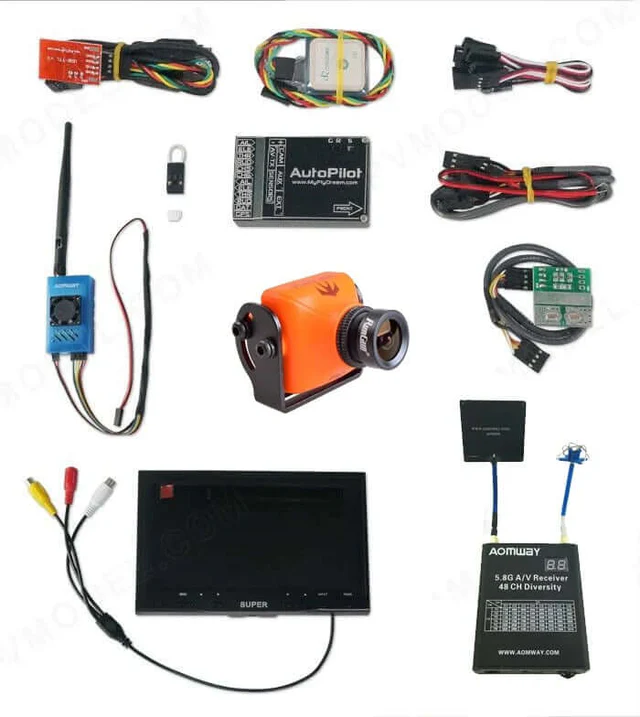

Combo 1 – Standard Long-Range Kit

Ideal for beginners or medium UAV platforms.

Includes:

• RunCam Swift 2 1/3 CCD IR Blocked Micro Camera ×1

• 1.2G/5.8G Micro BEC w/ CNC Enclosure (5V) ×1

• AOMWAY 5.8G 15CH 1000mW TX ×1

• 5.8GHz 48CH RaceBand Diversity Receiver ×1

• XT60 Male to Dual DC 5.5mm Plug Wire ×1

• 7” TFT Color LCD Screen ×1

• MyFlyDream OSD Autopilot w/ 50A current sensor ×1

• All required cables & accessories

Combo 2 – Enhanced Range & Dual Receiver

Ideal for professional fixed-wings or hybrid UAVs.

Includes:

• RunCam Swift 2 1/3 CCD IR Blocked Micro Camera ×1

• 1.2G/5.8G Micro BEC w/ CNC Enclosure (5V) ×1

• AOMWAY 5.8G 15CH 1000mW TX ×1

• Sharp Vision 7” LED Monitor w/ Dual 5.8G Receiver + DVR ×1

• AOMWAY 5.8G 5dBi Omni Antenna ×1

• AOMWAY 5.8G 14dBi Mini Panel Antenna ×1

• RP-SMA Male to SMA Female Adapter ×1

• Rlink V2 433MHz 16CH Long Range Combo ×1

• MyFlyDream OSD w/ 50A (or 100A optional) current sensor ×1

• All required cables & accessories

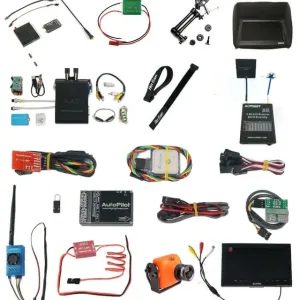

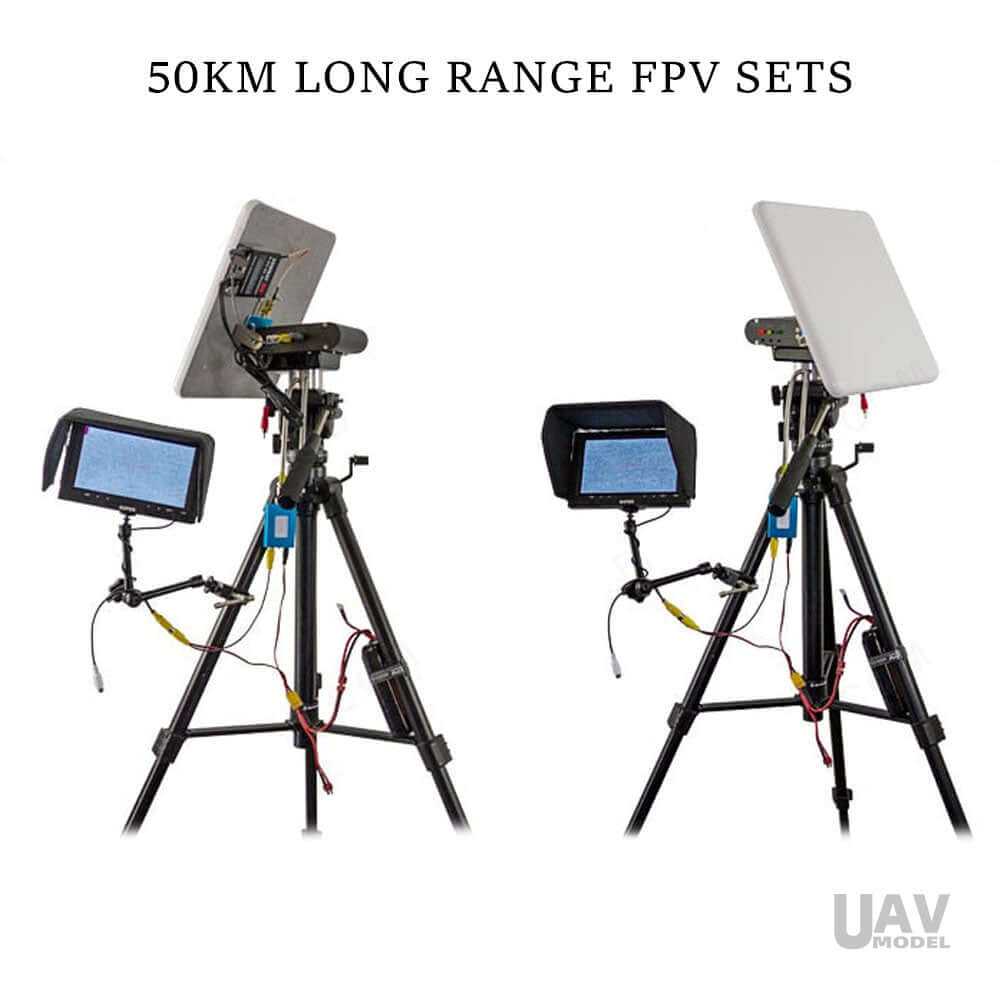

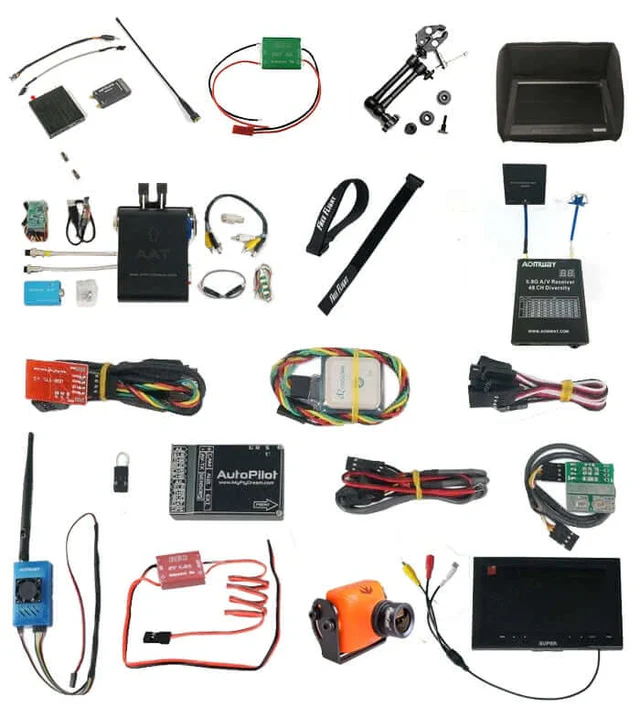

Combo 3 – Ultimate 50KM Pro Kit

Designed for industrial & professional long-distance UAVs.

Includes:

• MyFlyDream AAT Automatic Antenna Tracker (6 or 12 Channels) ×1

• Rlink V2 433MHz 16CH Long Range Combo ×1

• RunCam Swift 2 1/3 CCD IR Blocked Micro Camera ×1

• AOMWAY 5.8G 15CH 1000mW TX ×1

• MyFlyDream OSD Autopilot w/ 50A or 100A Current Sensor ×1

• 5.8GHz 48CH RaceBand Diversity Receiver ×1

• MFD 5.8G 23dB High Gain Flat Antenna Panel ×1

• 11” Articulating Magic Arm + Super Clamp ×1

• Sharp 7” TFT Monitor + Sun Hood ×1

• High-strength Velcro Straps & Mounting Accessories

• All required wiring, connectors, and BEC modules

⚙️ Performance & Reliability

• Tested Range: Up to 50km (unobstructed line-of-sight)

• Signal Type: 433MHz RC Control + 5.8GHz FPV Video

• Transmission Stability: Enhanced by dual-receiver diversity and high-gain panel antennas

• Power Input: XT60 compatible, 2S–6S Lipo supported

• Mount Compatibility: Fits all fixed-wing UAVs ≥1500mm wingspan
