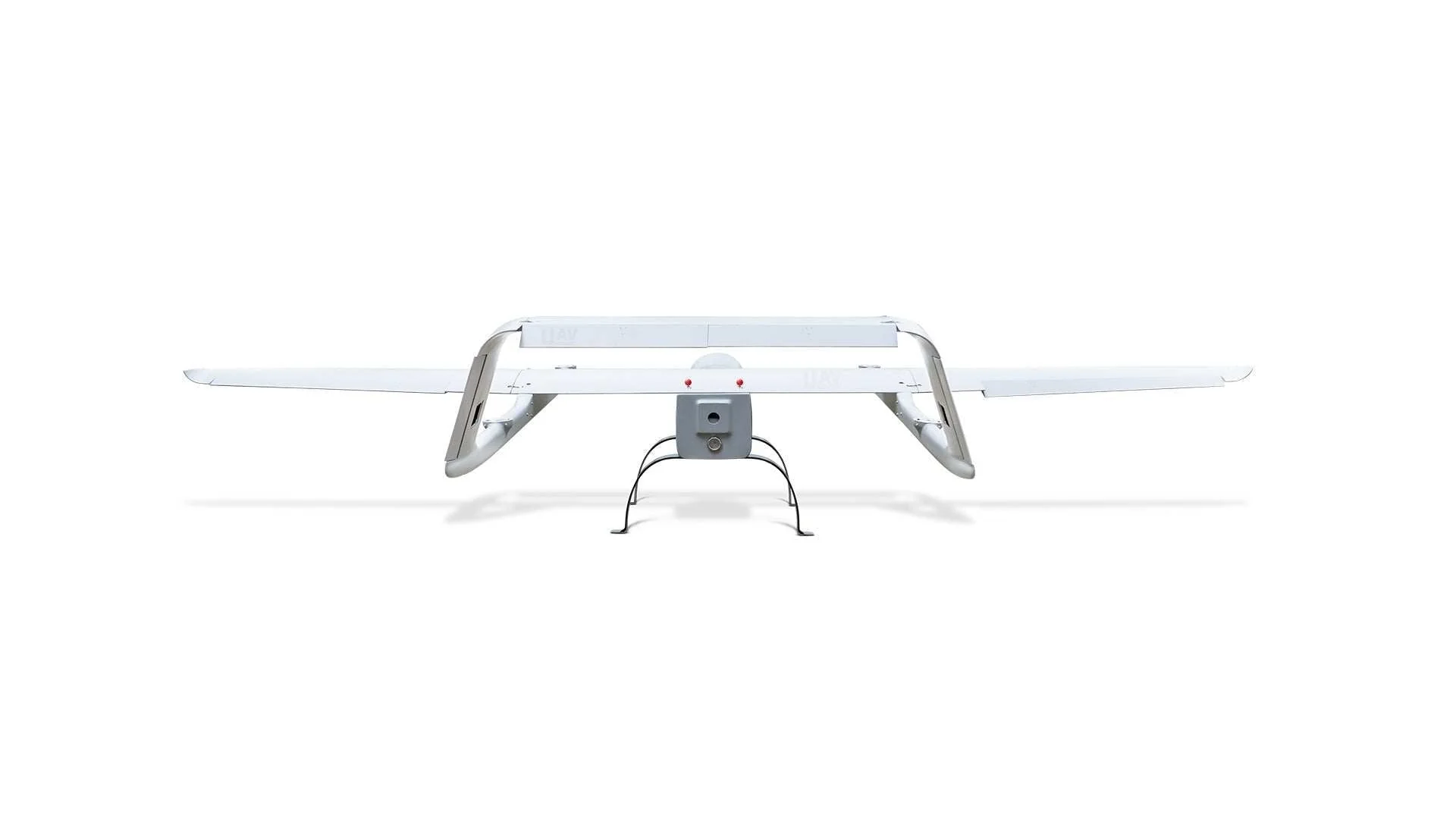

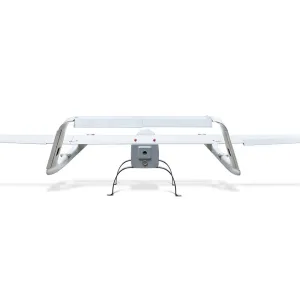

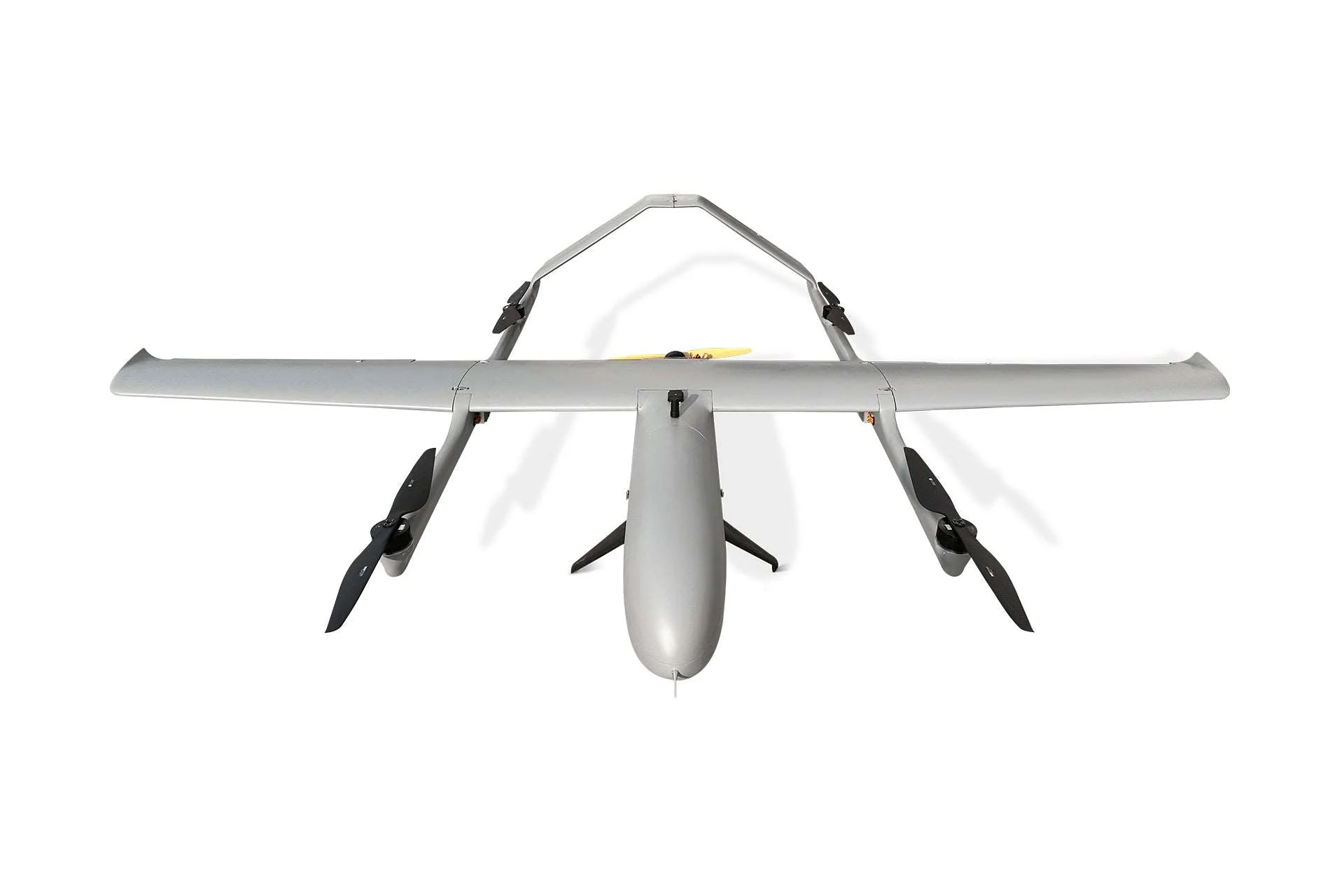

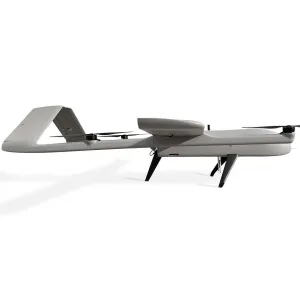

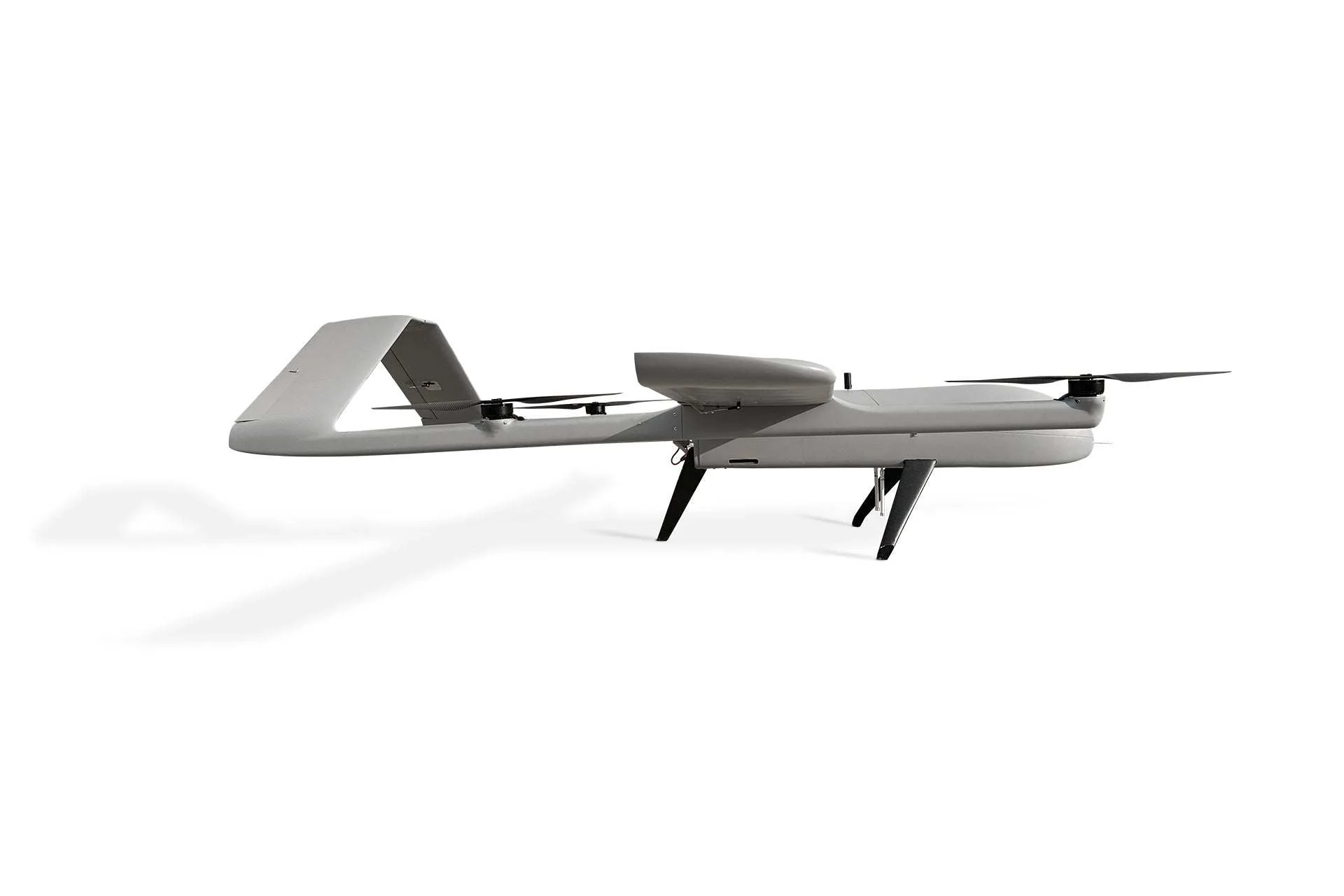

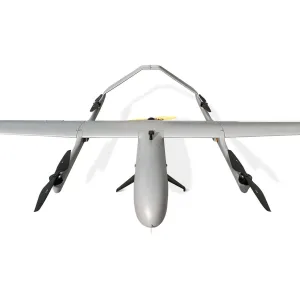

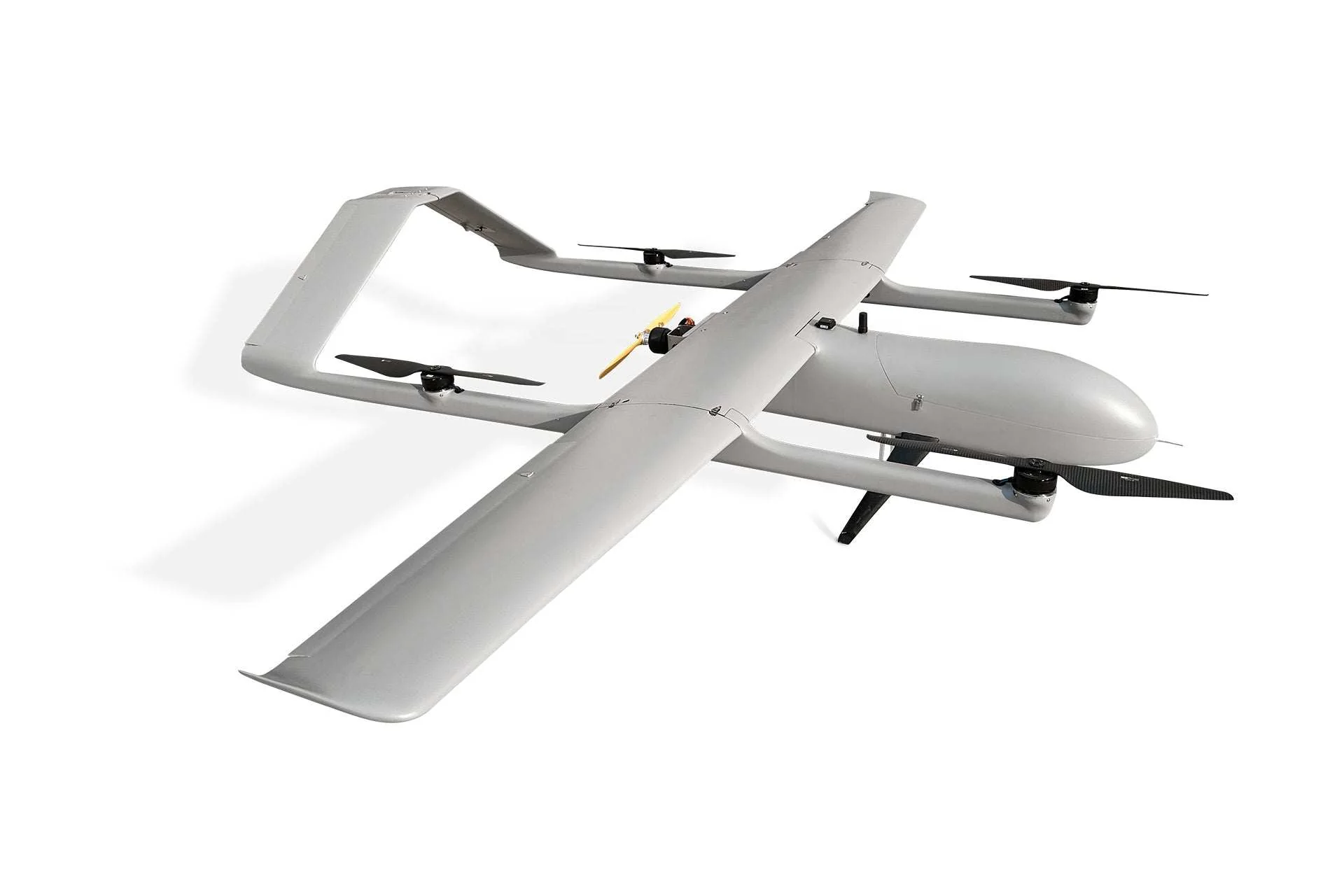

Flyspark 0173 Hybrid VTOL Fixed Wing Drone – 3600mm Wingspan, 40kg MTOW, 6kg Payload, 6 Hours Endurance, Carbon Fiber Pusher Propeller Gasoline UAV
₹3,000,000.00
Presenting the Flyspark 0173 Hybrid VTOL Fixed Wing Drone – a next-generation hybrid VTOL UAV combining quad-rotor vertical takeoff and landing with efficient fixed-wing cruise via a rear pusher propeller and gasoline engine. Engineered from lightweight yet robust carbon fiber, this platform delivers exceptional range, payload capacity, and reliability for professional applications.
Perfect for long-endurance missions such as aerial surveillance & monitoring, precision mapping & surveying, infrastructure & pipeline inspection, agriculture & environmental monitoring, search and rescue, and border/security patrols. The hybrid design eliminates runway requirements while providing fuel-efficient flight times far beyond battery-only drones.
Key Specifications:
- Material: Carbon fiber – High strength-to-weight ratio for durability and performance

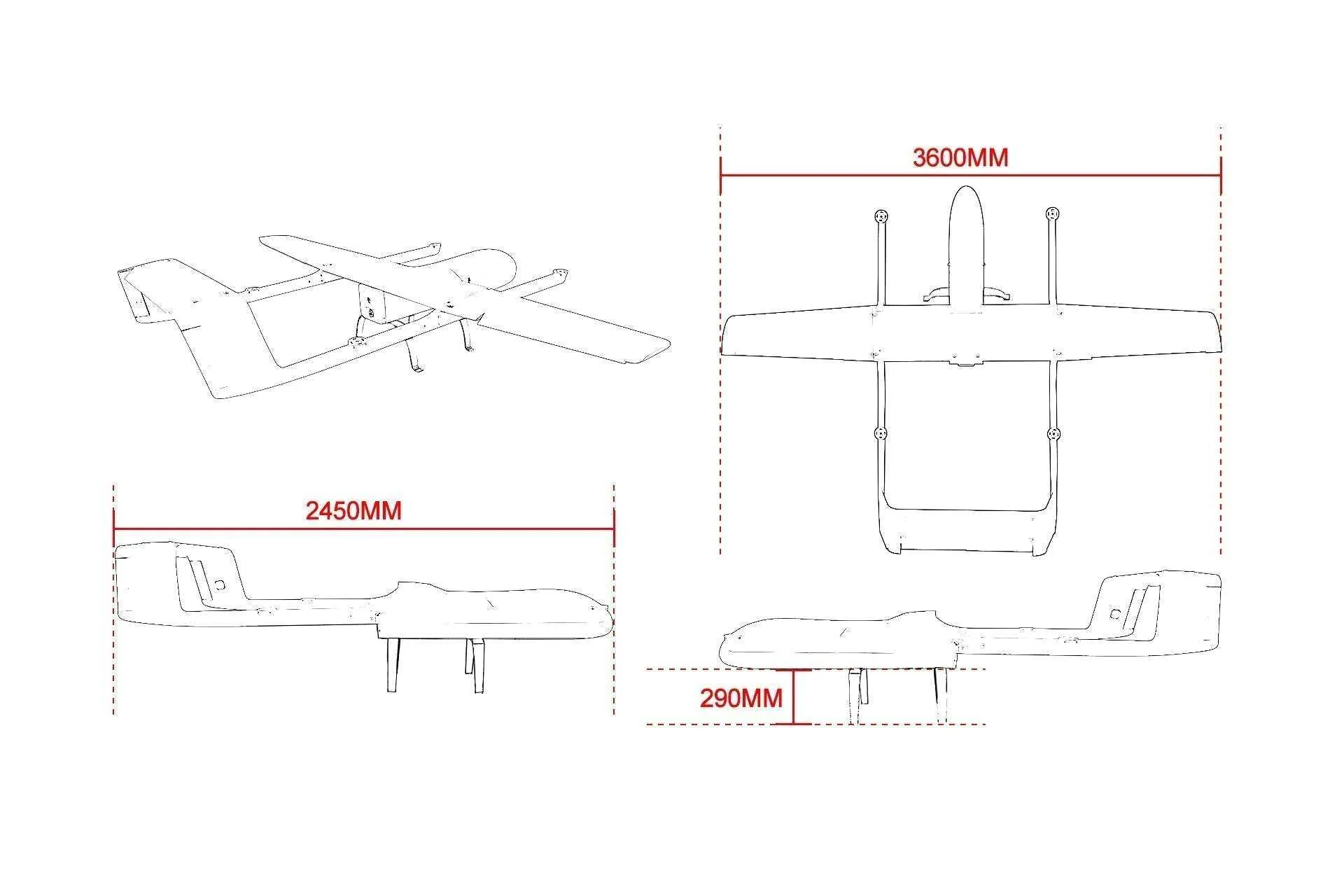

- Wingspan: 3600mm – Optimized for lift, stability, and aerodynamic efficiency
- Length: 2420mm

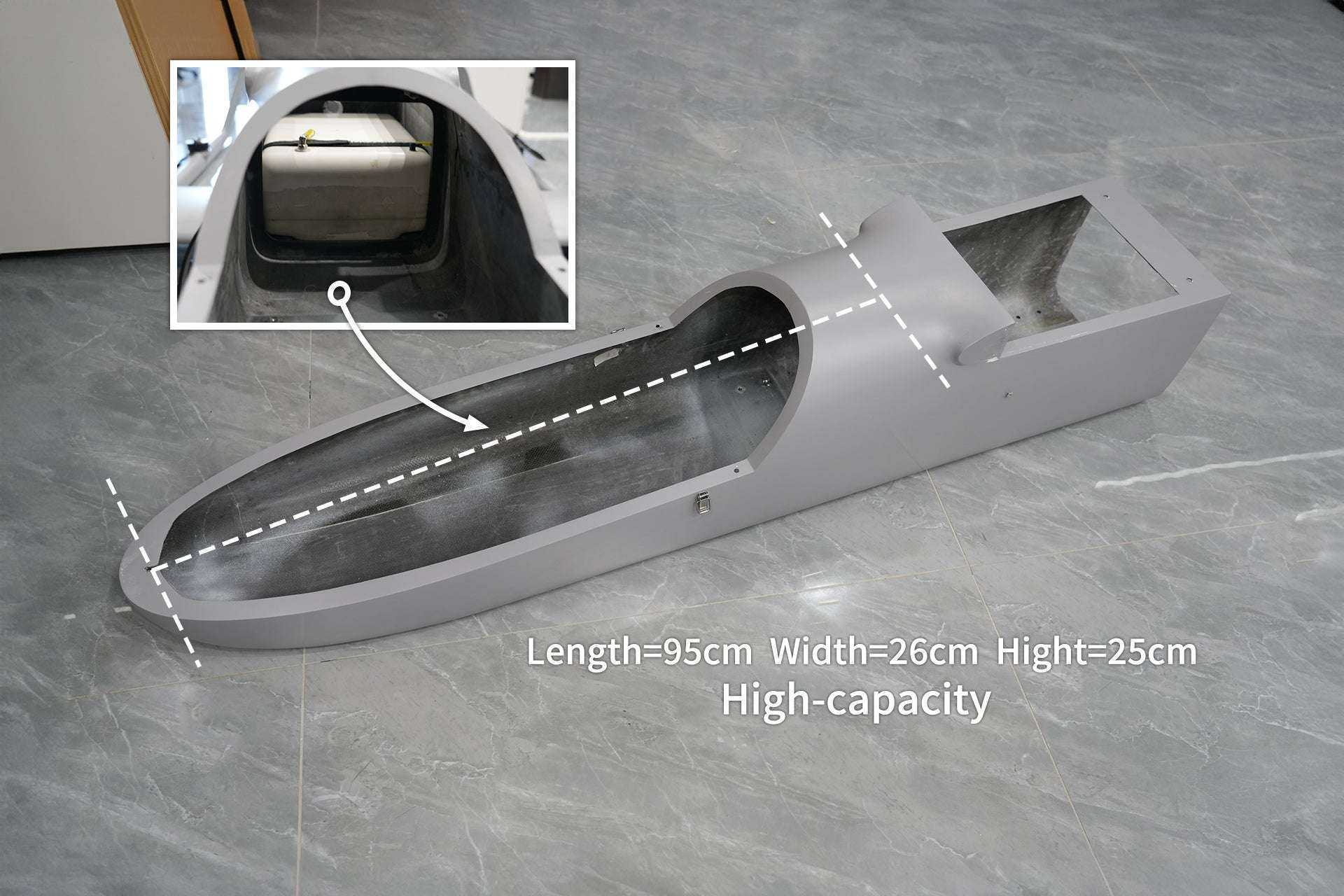

- Payload Bay Dimensions: 560mm × 260mm × 270mm (L×W×H) – Spacious for gimbals, EO/IR cameras, LiDAR, multispectral sensors, or custom modules
- Wing Area: 132 dm²
- Empty Weight: 16kg
- Payload Capacity: 6kg
- Maximum Takeoff Weight (MTOW): 40kg

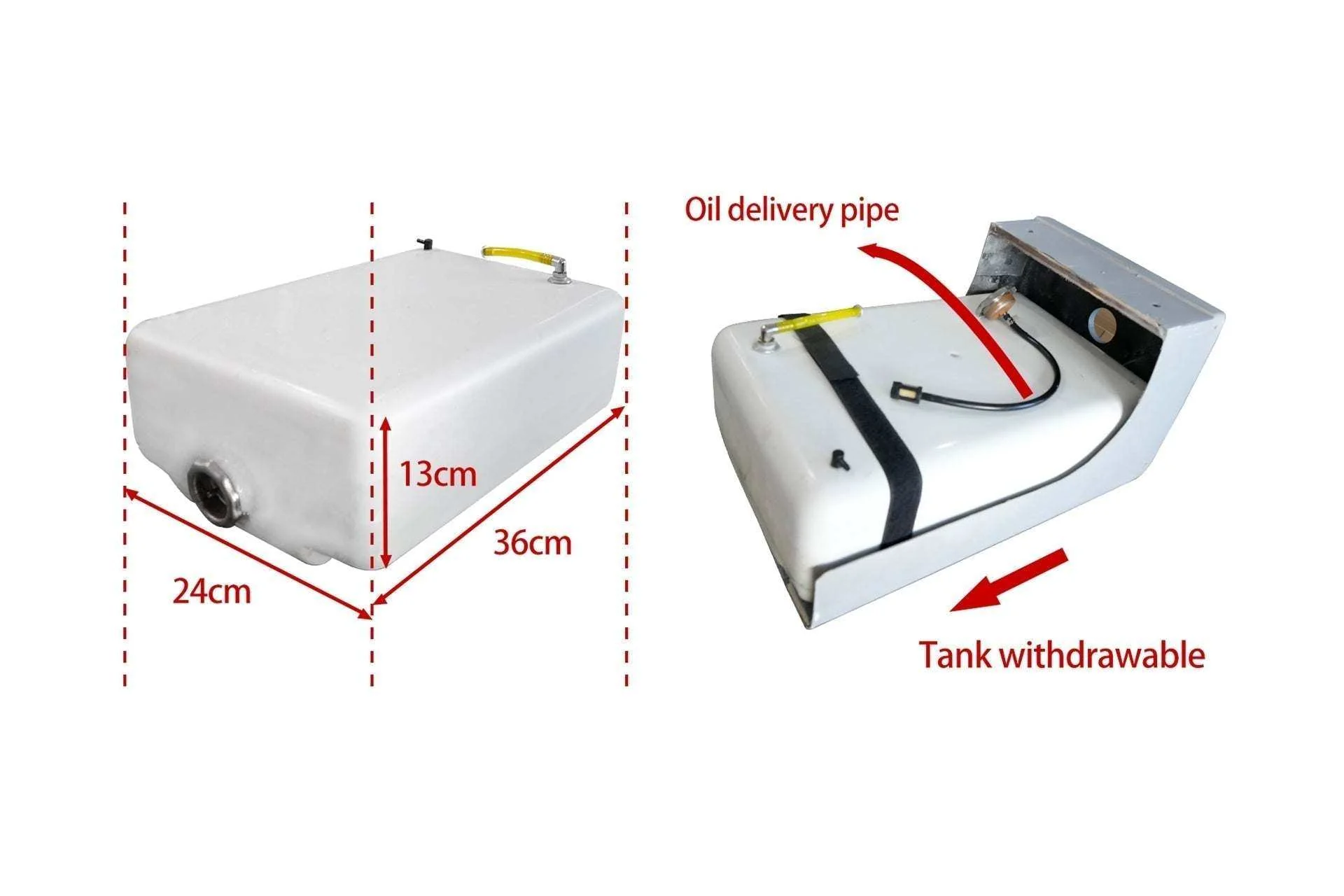

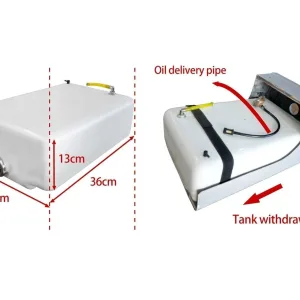

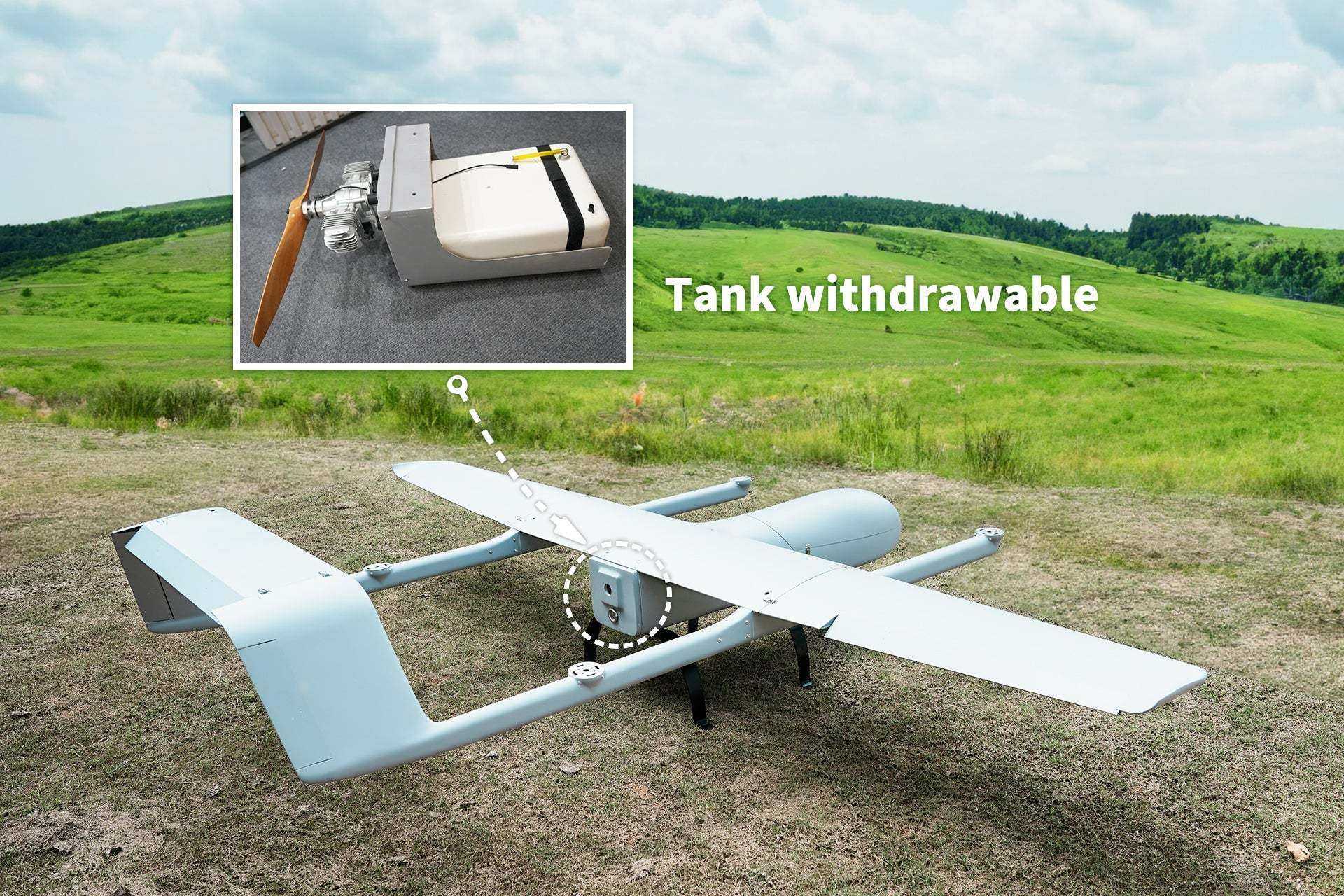

- Fuel Tank: 11L (gasoline/petrol compatible for extended missions)
- Performance: Cruise speed 30 m/s (~108 km/h) | Max speed 35 m/s (~126 km/h) | Stall speed 24 m/s | Maximum flight time up to 6 hours

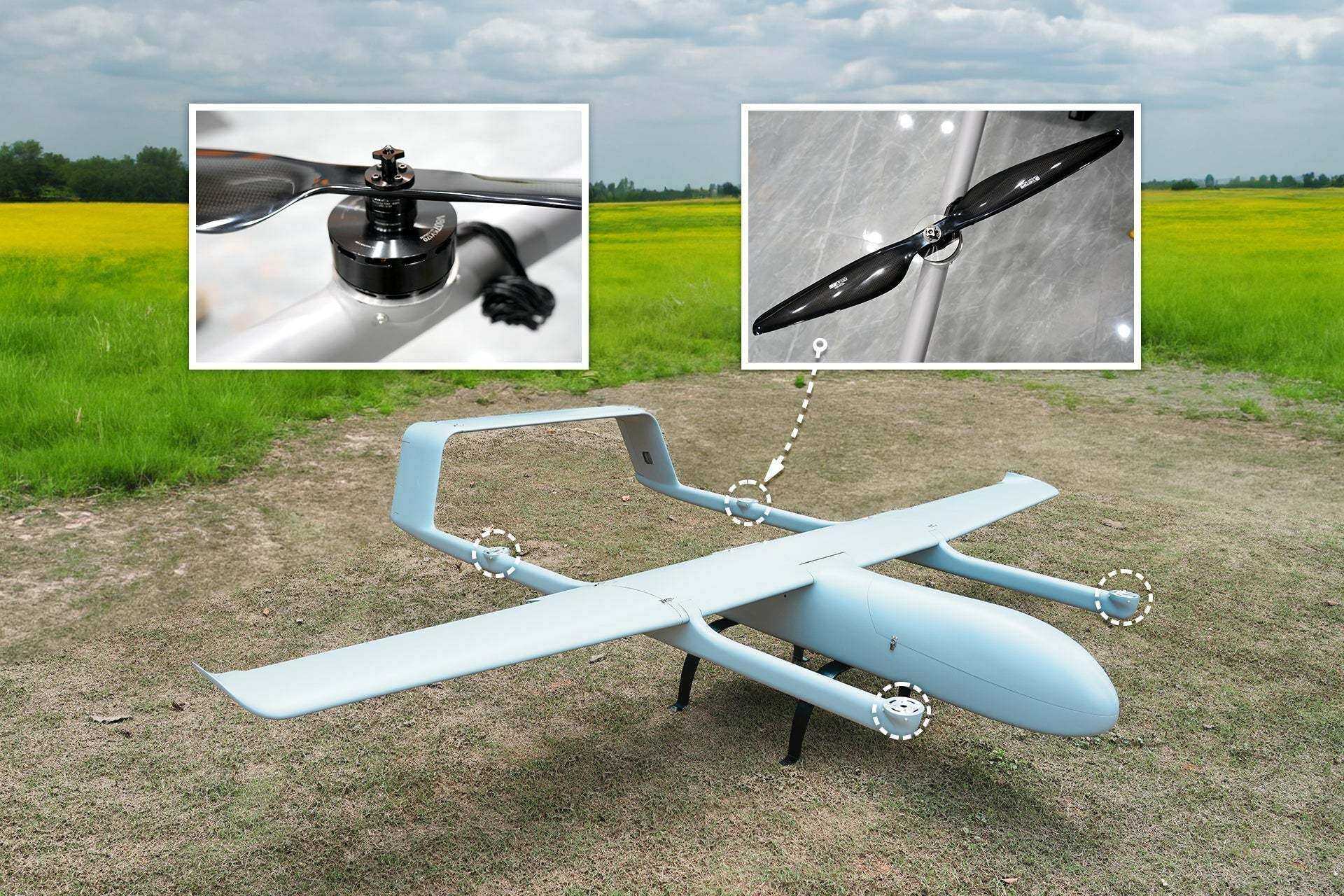

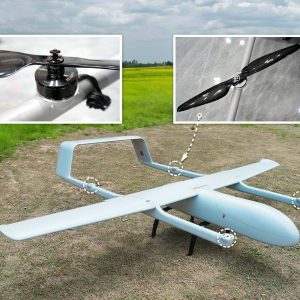

- Power & Configuration: Hybrid VTOL with four lift rotors + tail pusher propeller/gasoline engine for seamless transition from hover to forward flight
- Build: Modular design with V-tail/booms, landing gear, and quick-assembly features for field deployment
This hybrid VTOL fixed wing drone offers unmatched operational flexibility—no launch/recovery infrastructure needed—while maintaining low fuel consumption and high endurance. As a Made in India product from Flyspark (Ahmedabad/Gandhinagar, Gujarat), the 0173 supports local innovation, customization, and compliance needs.
Customize with advanced autopilots, telemetry/data links, EO/IR payloads, or full RTF (ready-to-fly) packages. Contact Flyspark for integration support, training, spares, or fleet solutions.
Elevate your missions with the Flyspark 0173 – the reliable long endurance hybrid VTOL UAV for demanding real-world use.
Flyspark 0173 hybrid VTOL UAV: 3600mm wingspan, carbon fiber, 40kg MTOW, 6kg payload, 6 hours endurance with pusher gasoline engine. Ideal for surveillance, mapping, inspection in India.
| PARAMETER | ||
| Specifications | Material | carbon fiber |
| Wingspan | 3600mm | |
| Length | 2420mm | |
| Payload bay dimensions | 560mm*260mm*270mm(L*W*H) | |
| Wing area | 132dm2 | |
| Empty weight | 16kg | |
| Payload capacity | 6KG | |
| Maximum takeoff weight | 40KG | |
| Fuel tanks | 11L | |
| Performance Characteristics | Cruising speed | 30m/s |
| Maximum speed | 35m/s | |
| Stall speed | 24m/s | |
| Maximum flight time | 6 Hours | |
| Flyspark 0173 hybrid VTOL UAV | |||
| Name | Specification | KIT | PNP(E) |
| Flying platform | SV360 outer wing | 2 | 2 |
| SV360 mid-wing | 1 | 1 | |
| SV360 mainframe | 1 | 1 | |
| SV360 support strut (including vertical stabilizer) | 2 | 2 | |
| SV360 landing gear | 2 | 2 | |
| SV360 horizontal stabilizer | 1 | 1 | |
| SV360 fuel tank | 1 | 1 | |
| SV360 engine cowling | 1 | 1 | |
| Power system(Engine) | Tail thruster engine | 1 | |
| Tail thruster blades | 1 | ||
| VTOL motor | 4 | ||
| VTOL ESC | 4 | ||
| VTOL propeller | 2 | ||
| Servos | 7 | ||
| Pitot tube | 1 | ||
| Parts packaging | 1 | ||
