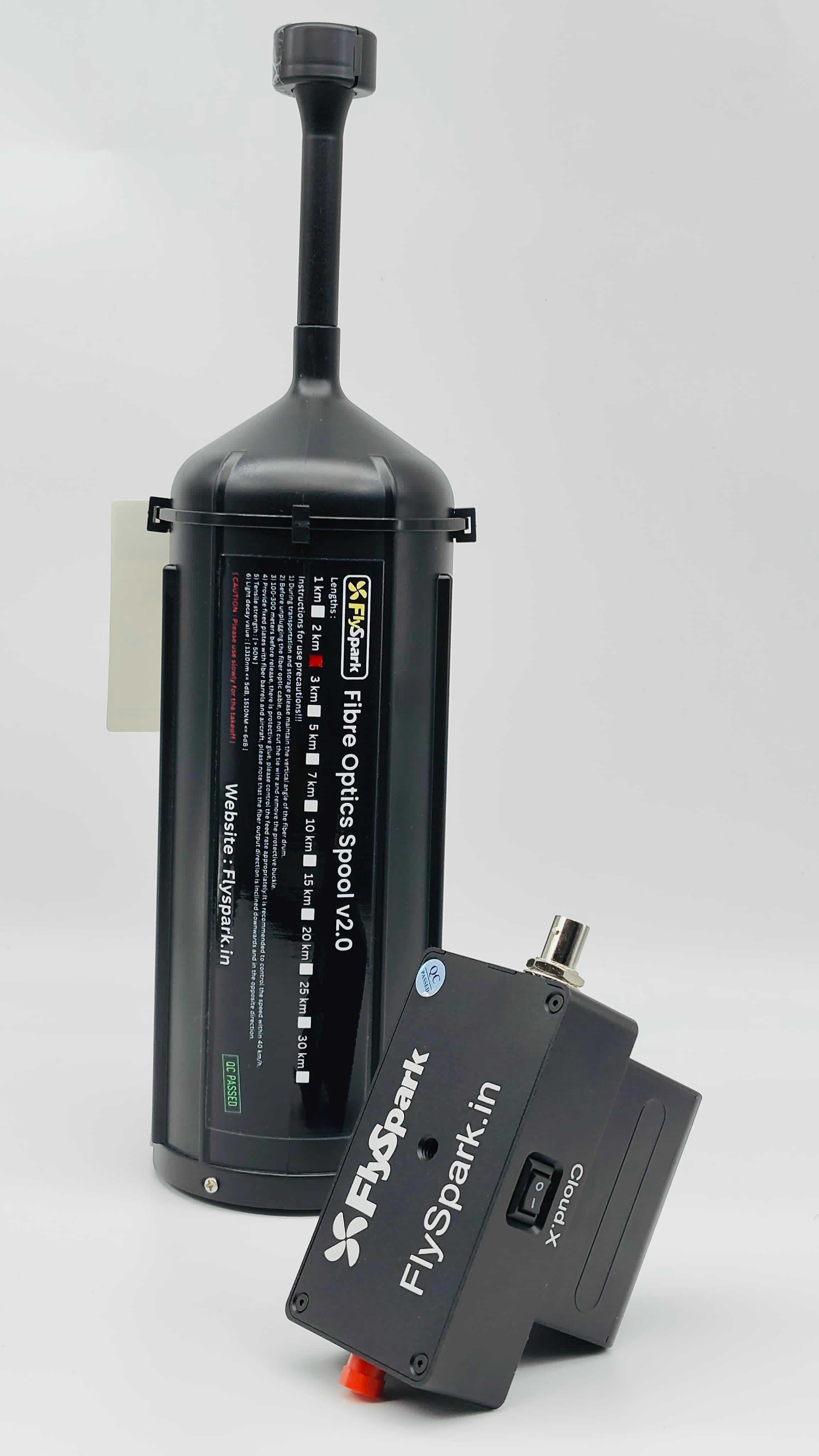

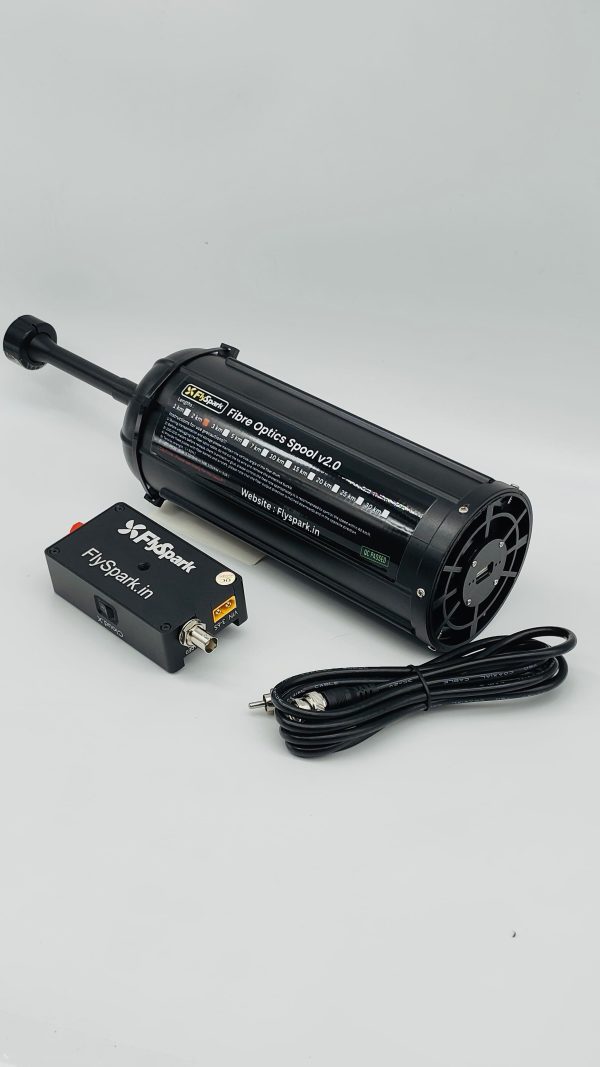

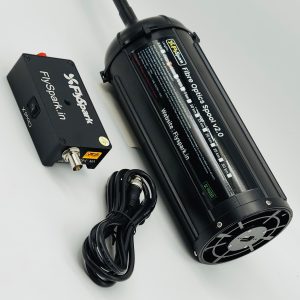

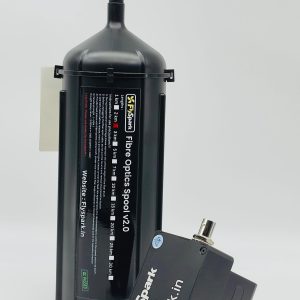

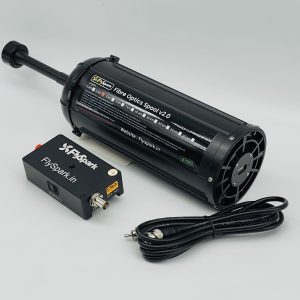

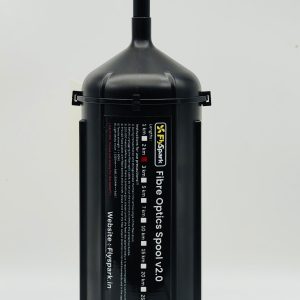

⚡ What it is

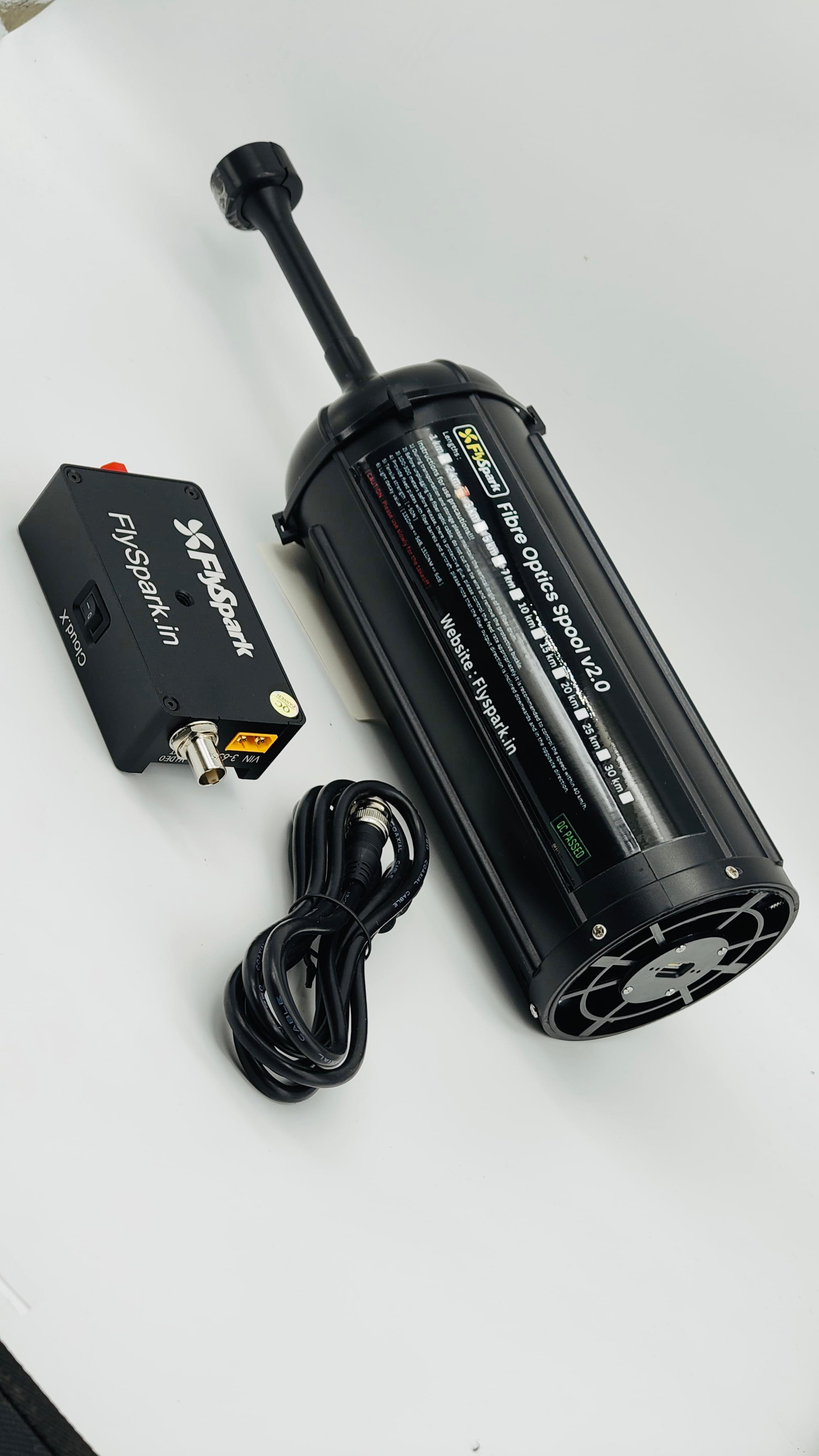

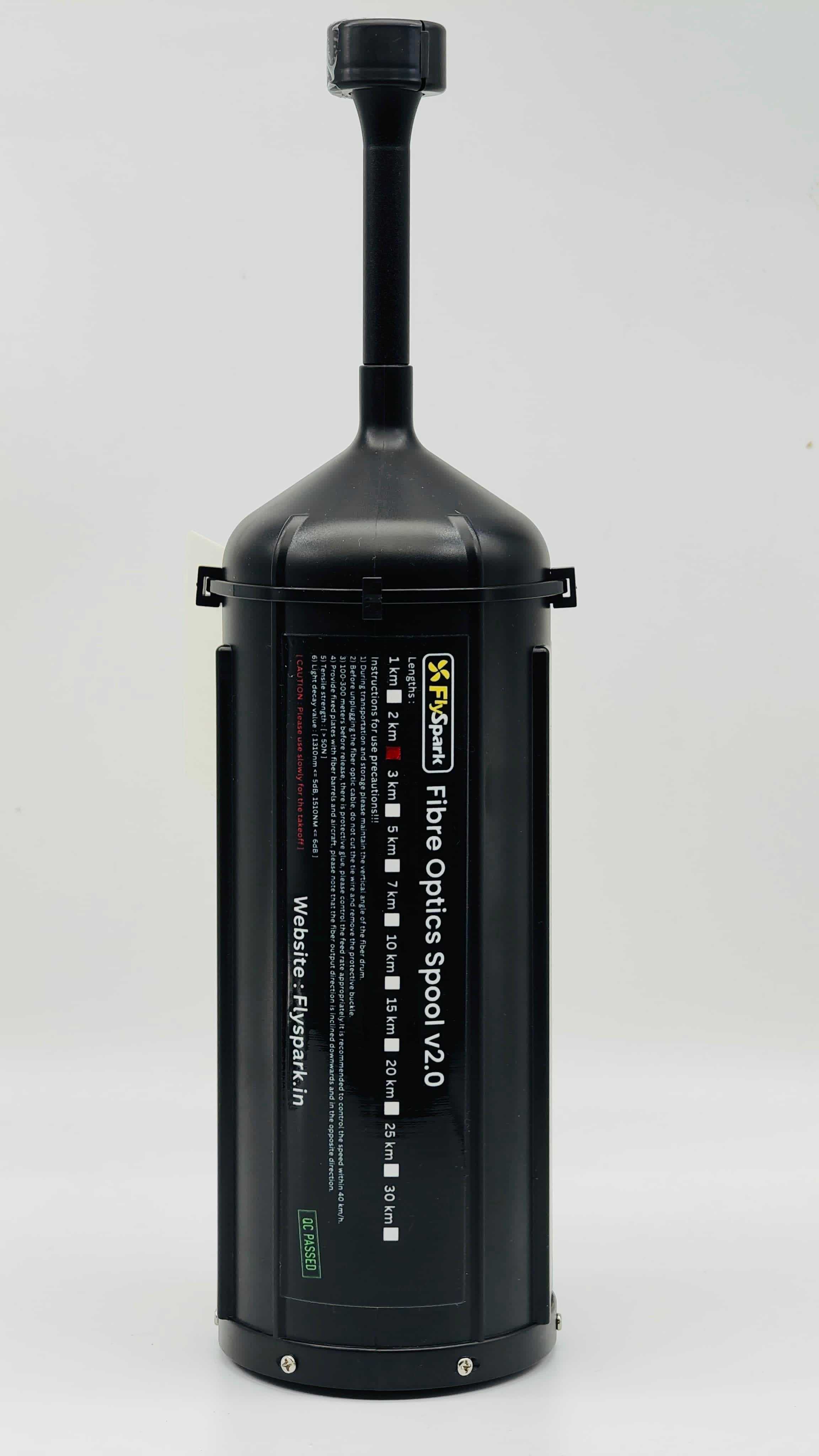

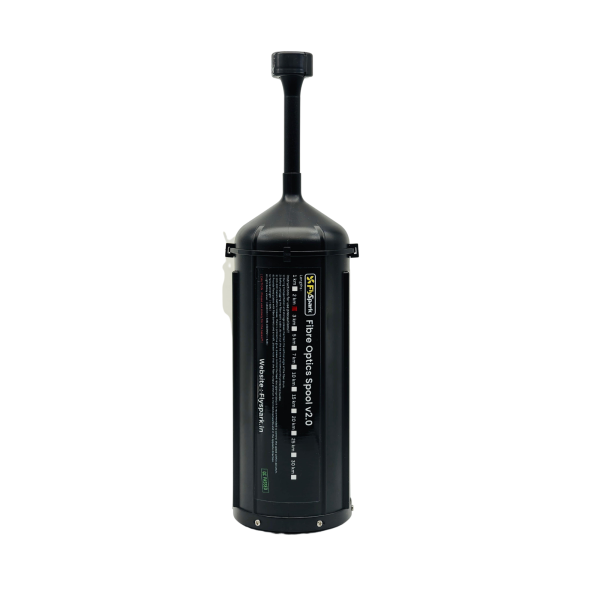

FlySpark Fiber Optics Spool V2.0 is a rugged, field-ready fiber reel built for rock-solid, low-latency FPV + data links from 1 km up to 30 km—without the headache of RF noise, jamming, or interference that destroys wireless links.

✅ Why teams choose fiber (simple truth)

• Zero RF interference: fiber doesn’t care about crowded 2.4/5.8 GHz airspace

• Consistent link quality: stable video + stable control even in harsh RF environments

• Low latency by physics: fiber propagation delay is ~4.9 µs/km (so 30 km ≈ 147 µs one-way) using typical single-mode group index values.

🧱 Built for real field work

• Rugged ABS enclosure with bright length markers (easy ID in the field)

• Sealed-bearing reel + smooth winding to reduce tangles/kinks during payout & retrieval

• Quick-release bulkhead connector for fast setup/teardown

• Optimized form factor for tethered drones, PTZ camera links, and long-range surveillance

🎯 Ideal for

🛡️ Defense trials • 🏭 industrial inspections • 🌲 forest surveillance • 🎥 live broadcast feeds • 🧪 R&D test ranges

🧠 Pro handling tips (prevents 90% failures)

• Don’t “hard kink” the fiber. Bend-insensitive fiber still has limits.

• Keep bends gentle (G.657.A2 design radius is 7.5 mm, but in real field use: bigger is safer).

• Always cap/clean connectors (dust = random video dropouts).

2) 🧵 Fiber Optic Cable Tray (1 km – 30 km) — G657A2 Single-Mode Spool

🔥 What it is

The FlySpark Fiber Optic Cable Tray is a precision-wound G.657A2 single-mode fiber spool designed for ultra-stable long-distance drone video + telemetry (FPV drones, UAV surveillance, ground-to-air optical links).

🧠 What “G657A2” actually gives you (not marketing — real spec)

• Bend-insensitive fiber class, minimum specified bend design radius 7.5 mm

• Designed for use across 1260–1625 nm bands (common single-mode windows)

• Typical attenuation targets for G.657.A2 class fiber: ≤0.35 dB/km @1310 nm and ≤0.21 dB/km @1550 nm (datasheet reference)

✅ Key Features (field-use focused)

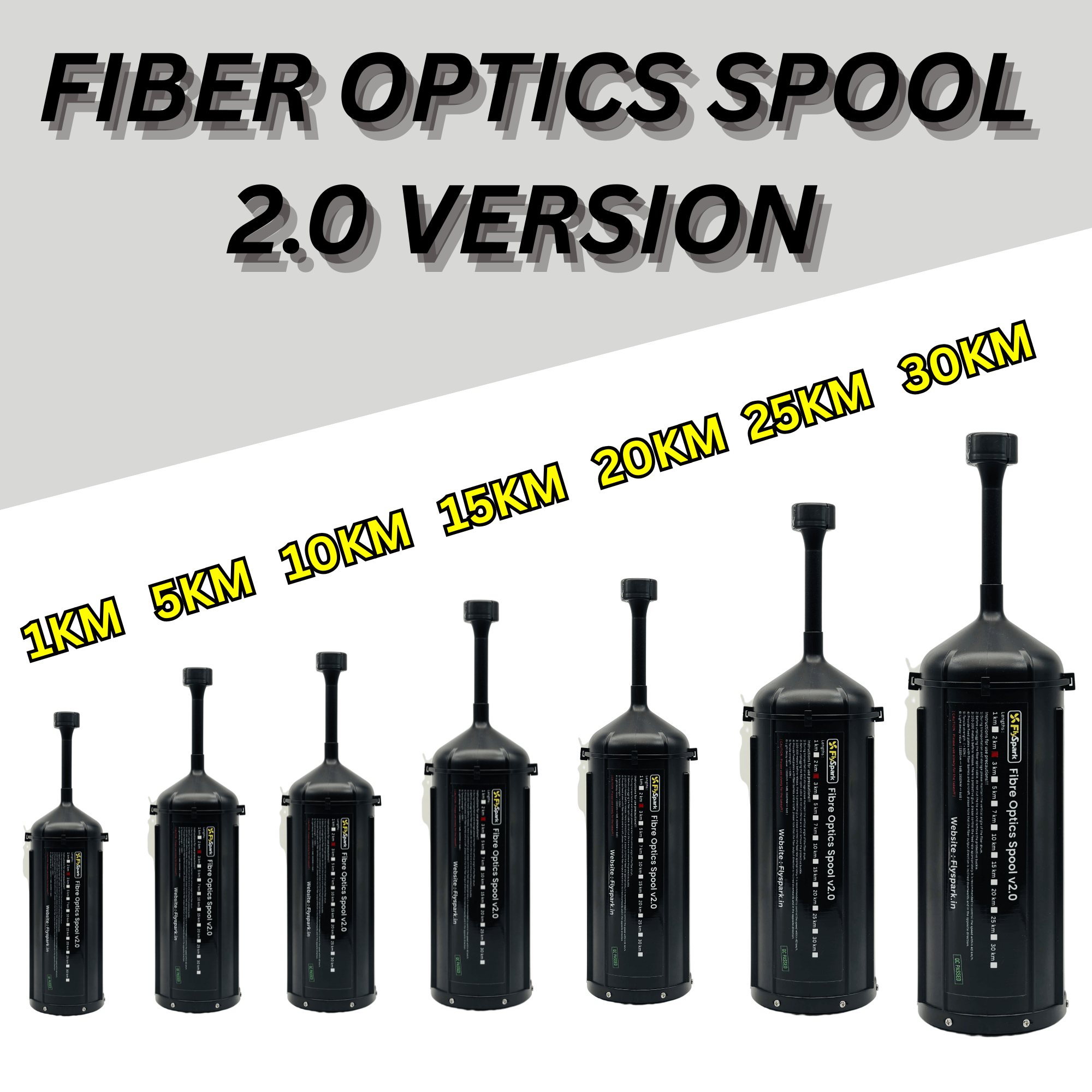

• 📏 1 km to 30 km range options

• 💪 High tensile strength >50 N (aerial strain handling)

• 🧲 Aluminium alloy nozzle = smooth payout + less fiber damage

• 🧱 ABS body (1–25 km) + Carbon-fiber shell (30 km) for rugged deployments

• 🔌 FC connector interface, quick reliable attachment

• 🌦️ Outdoor-ready: dust/shock resistant build

⚙️ Technical Specifications

• Fiber type: Single-Mode G657A2

• Core/Cladding: 9/125 μm

• Wavelength support: 1310 nm / 1550 nm

• Connector: FC

• Fiber diameter options: 0.26 mm / 0.43 mm

• Tensile strength: >50 N

• Nozzle material: Aluminium alloy

📦 Variant-wise Weight + Dimensions (D × L)

(From your live product page)

⚠️ Blunt correction about your weight list

Your list matches the site perfectly for 1km, 2km, 20km, 25km, 30km — great.
But 3km / 5km / 10km / 15km in your message do NOT match what’s on the product page (example: you wrote 3km = 470g, site says 800g).
So either:

• your list has typos, or

• you’re quoting a different “lite” batch/version.

If you want, I can rewrite this section in a way that avoids publishing the wrong numbers (but I won’t invent correctness).

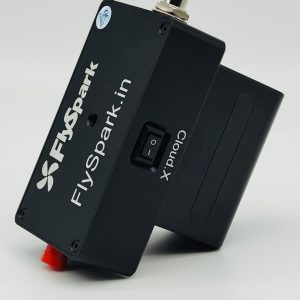

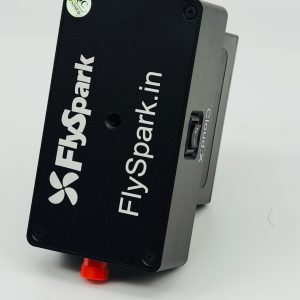

3) 🎛️ Fiber Optic Ground Station — Long Range Data & Video Link Controller

🧠 What it does

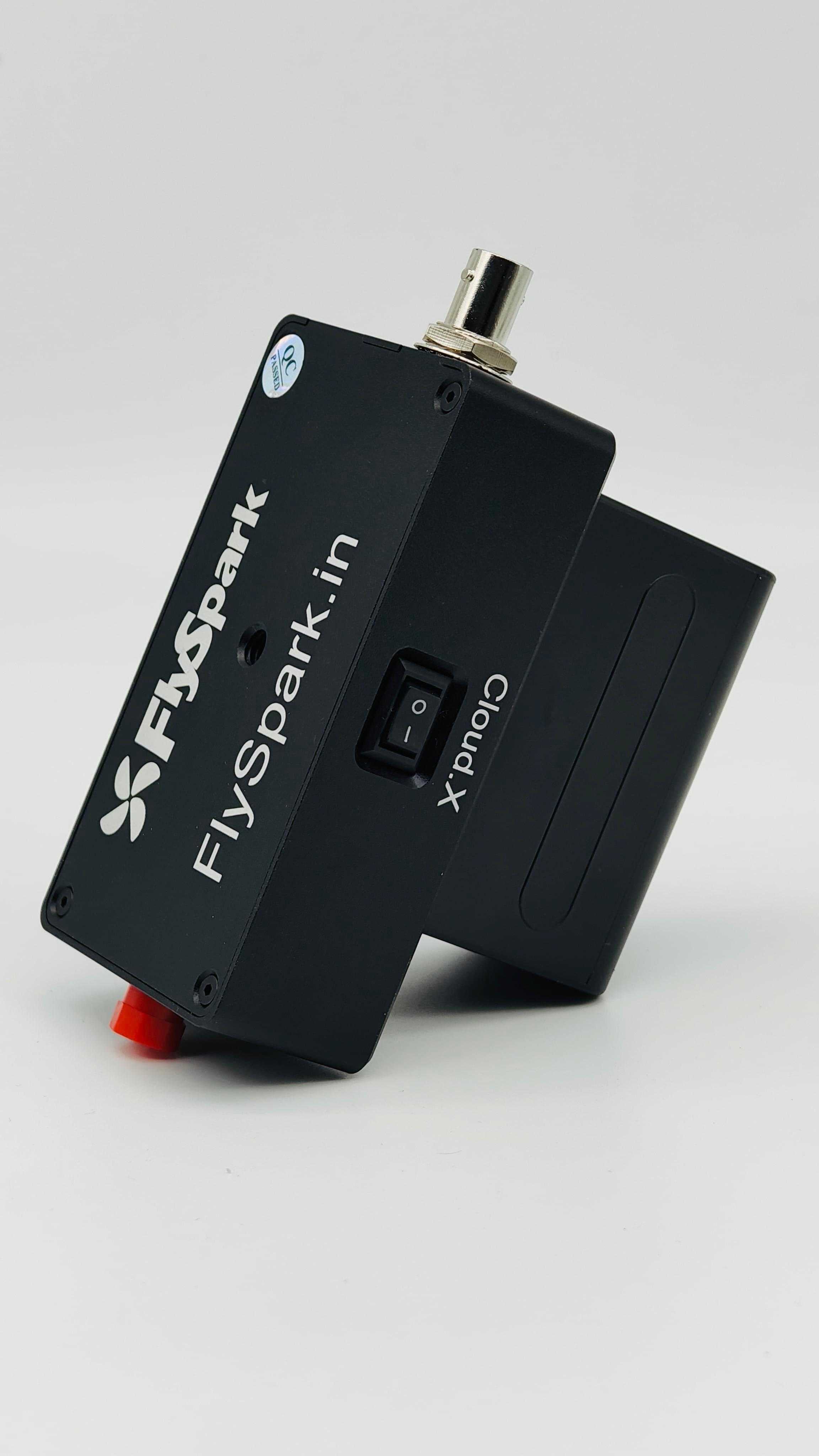

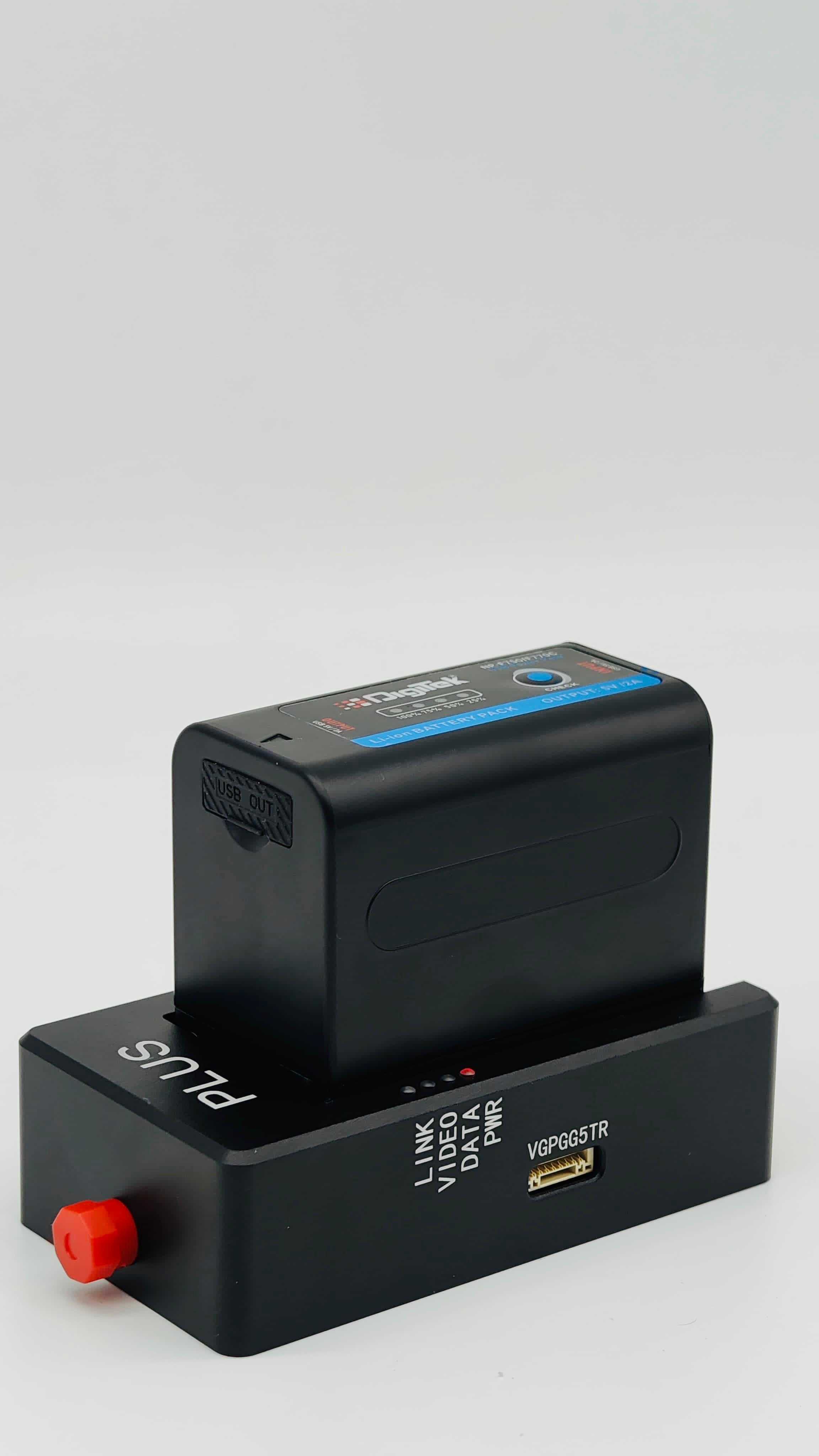

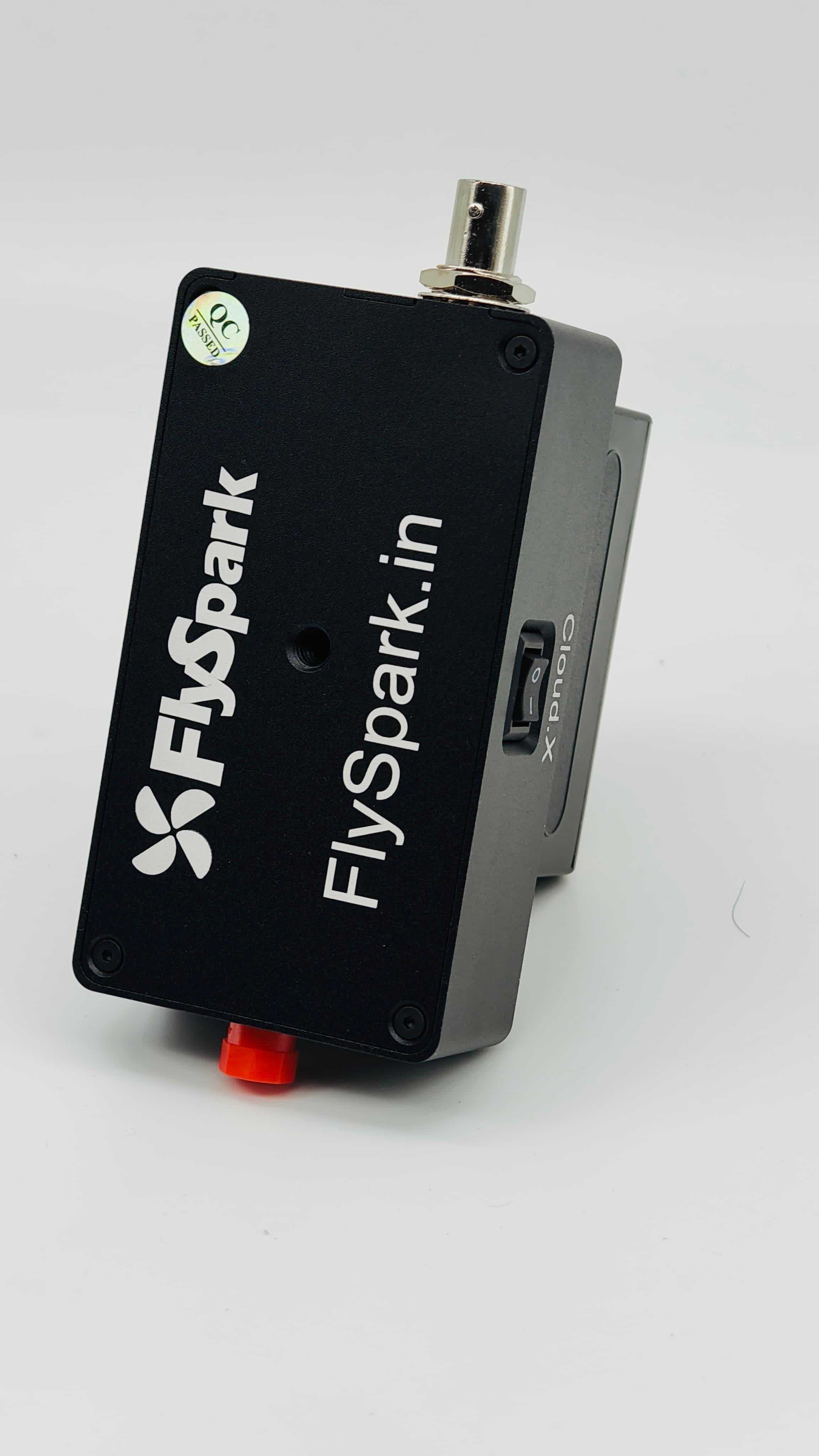

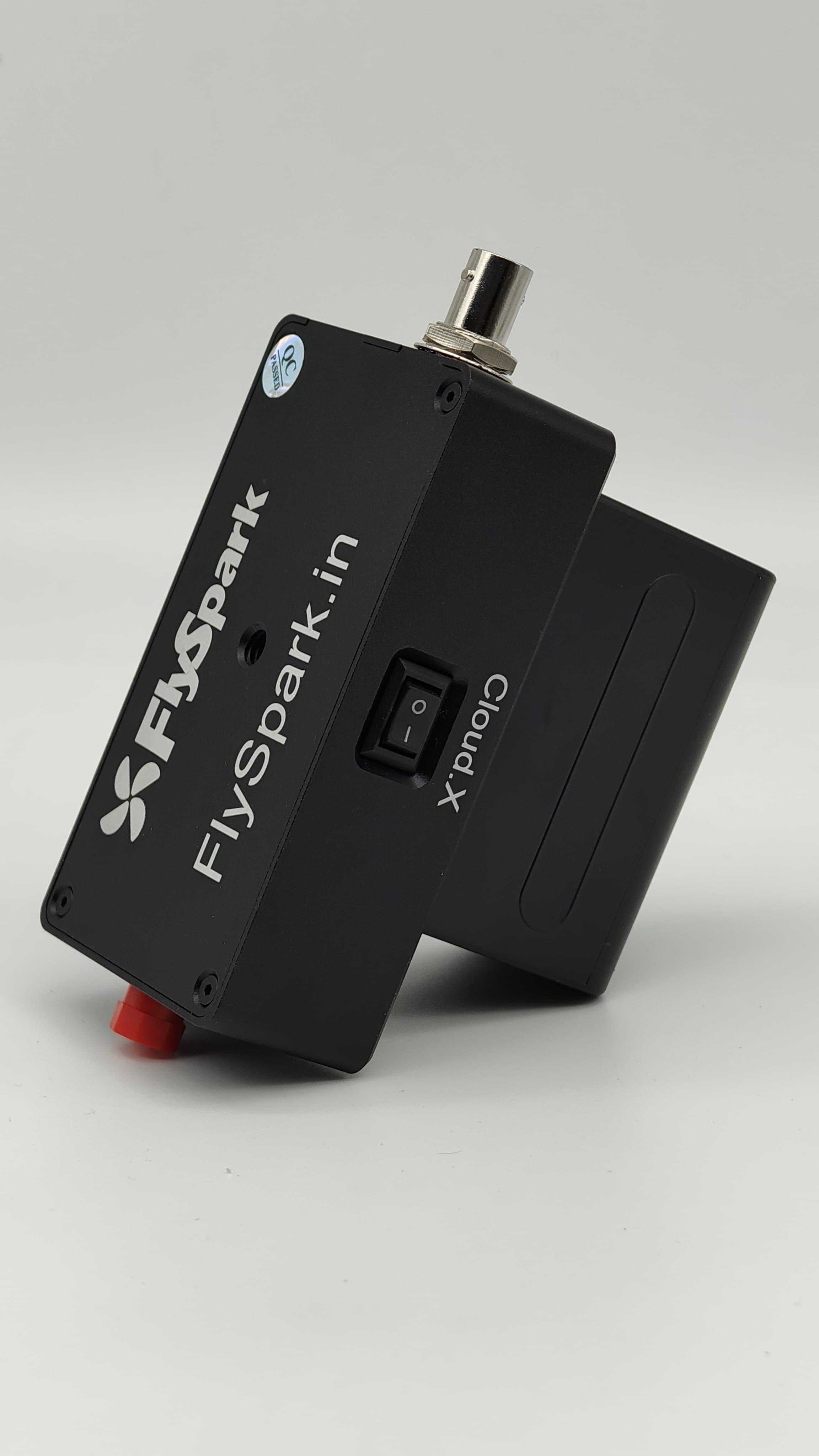

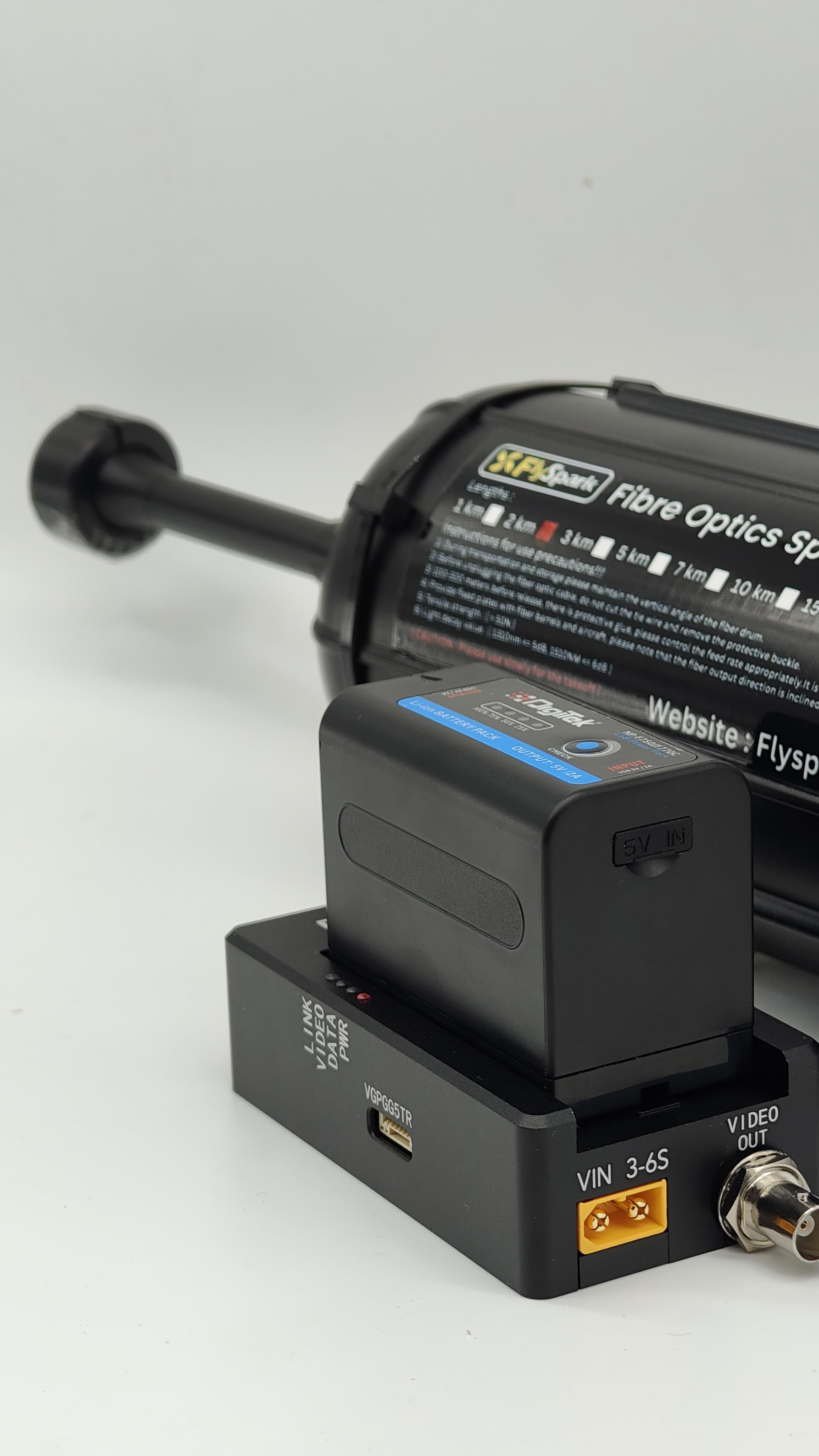

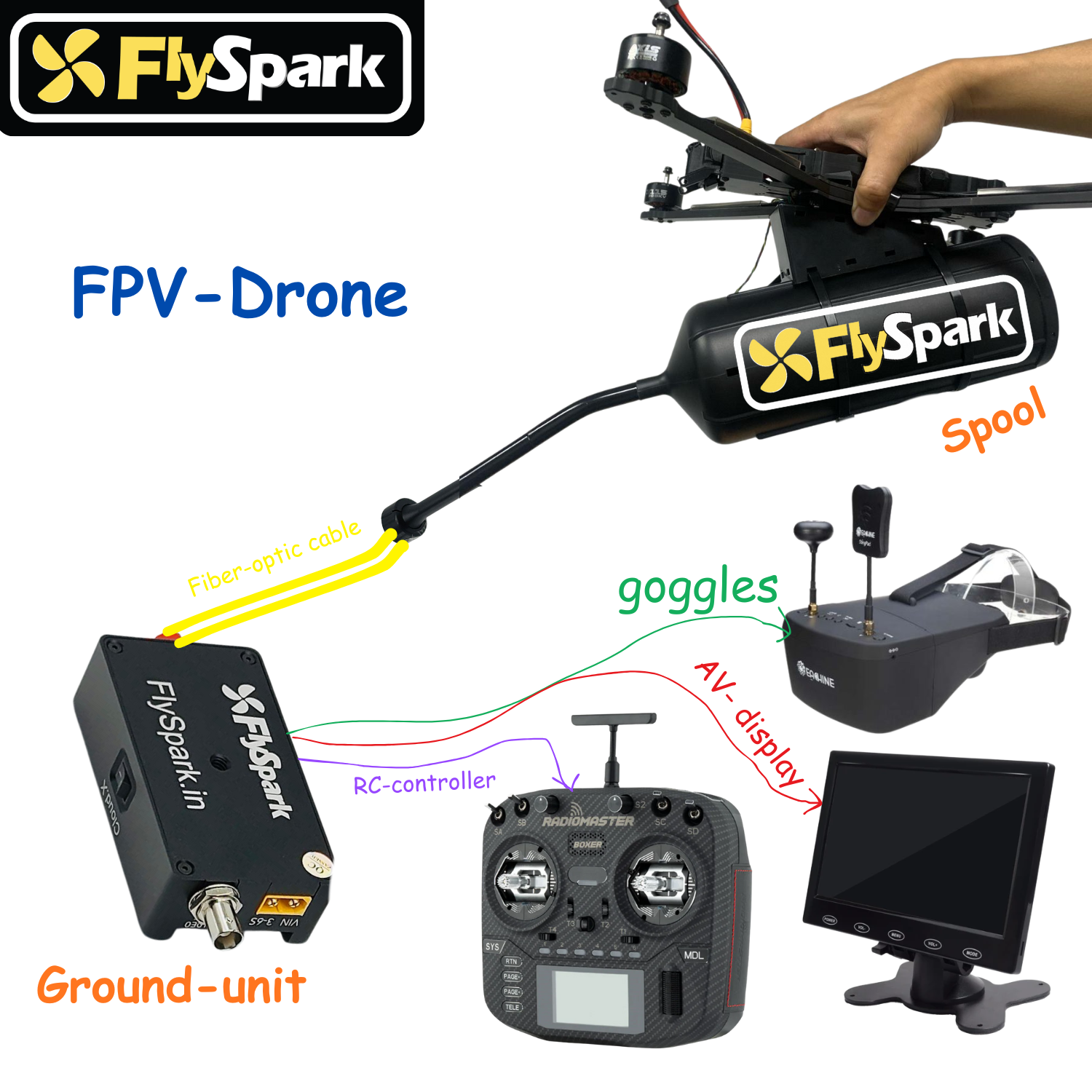

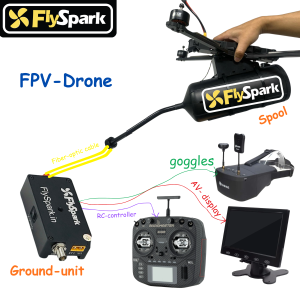

The FlySpark Opticallink GBD Ground Station is the ground-end fiber controller for drone optical tether / fiber-link systems—built for bi-directional telemetry + real-time video transmission over 1 km to 30 km using FlySpark fiber cable trays.

✅ What you get (practical capability)

• 🔁 Bi-directional data: stable control + return telemetry

• 🎥 Video support: NTSC / PAL / SECAM (analog formats)

• ⚡ Wavelength support: 1310 nm & 1550 nm (common single-mode windows)

• 🧩 Flight-controller friendly: TTL / SBUS / (PPM mentioned on page)

• 🛡️ Rugged aluminium alloy body = durability + EMI resistance

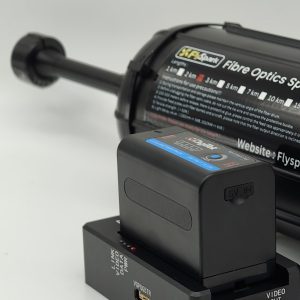

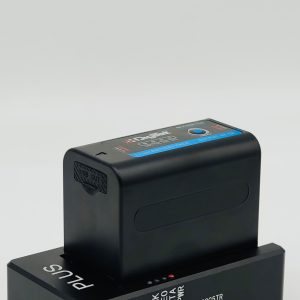

• 🔋 Portable power: 7.4V 6600mAh Li-Ion battery built in

⚙️ Technical Specifications (from your page)

• Battery: 7.4V 6600mAh Li-Ion

• Weight: 186g ± 2g

• Material: Aluminium alloy

• Fiber interface: FC (single mode)

• Data interface: GH1.25

• Data format: TTL / SBUS

• Data direction: Bi-directional

• Speed: 0–1 Mbps

• Range: up to 30 km (depends on cable tray)

• Dimensions: 123mm × 56mm × 31mm

🎯 Built for teams that can’t afford link failure

🛡️ defense drone projects • 🏭 industrial inspection • 🌲 surveillance • 🧪 academic/R&D payload testing
