Product Description

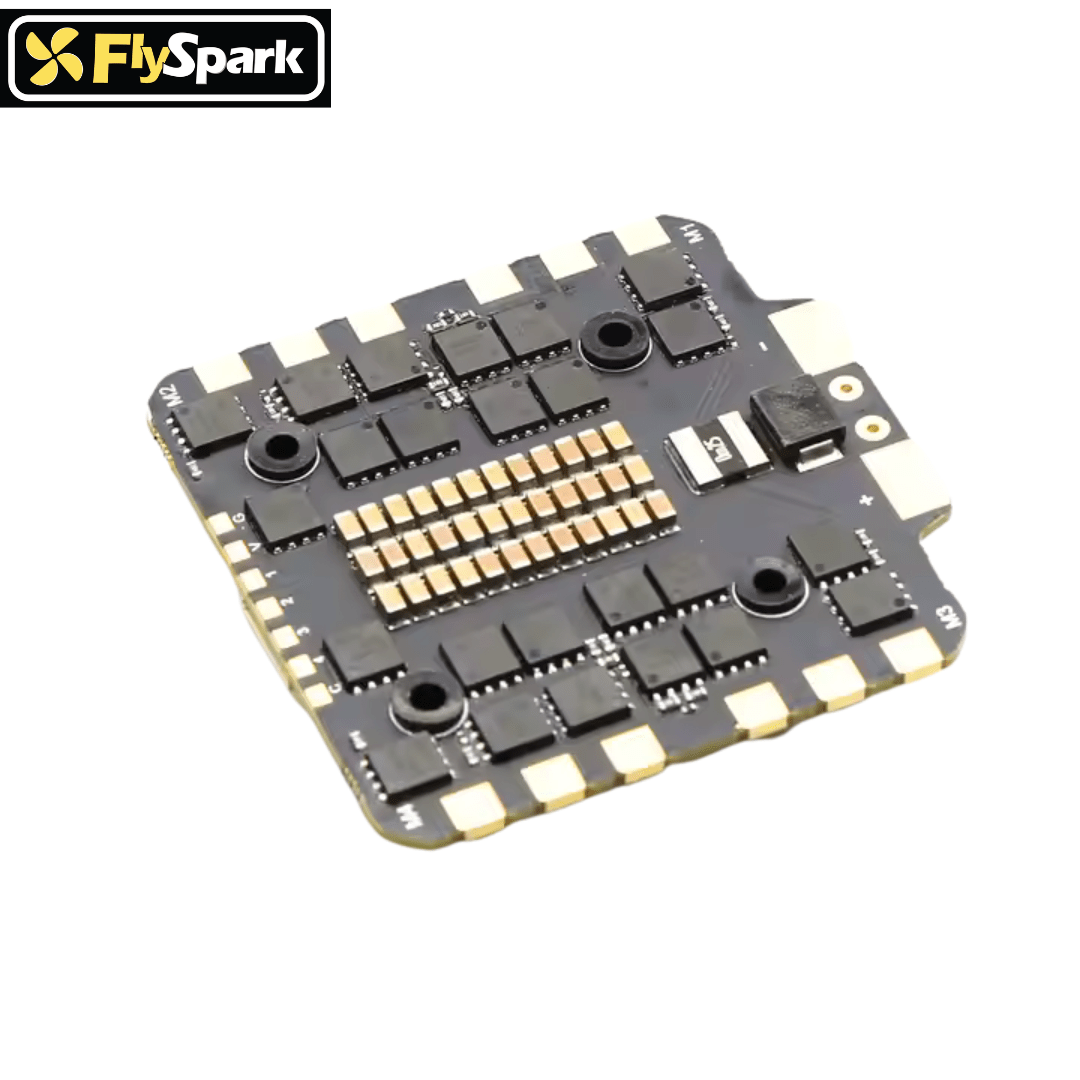

Elevate your next FPV build with the Fly Spark BLS 80A 4-in-1 ESC—a precision-engineered electronic speed controller that packs four independent 80 A channels into a single 30.5 × 30.5 mm board. Built around the ultra-responsive EFM8BB21F16G MCU and high-performance MOSFETs, it delivers up to 80 A continuous current per motor (90 A bursts for up to 10 s) while weighing in at just 28 g. Whether you’re racing, freestyling, or pushing the limits of cinematic flight, the Fly Spark ESC’s DSHOT300/600 digital protocol, 200-scale current sensor, and optimized Q_H_40_24_v0.19.2 firmware ensure rock-steady throttle control, accurate telemetry, and minimal latency—so you stay in perfect sync with your pilot inputs.
| Feature | Value | Benefit for FPV Pilots |
|---|---|---|
| 4-in-1 ESC Board | Four 80 A channels on one 30.5 × 30.5 mm PCB | Saves weight & space—streamlines wiring for cleaner builds and better airflow. |
| EFM8BB21F16G MCU | High-speed 8-bit microcontroller | Ultra-precise throttle/brake control for snappy response and smoother maneuvers. |
| Premium MOSFETs (80 A continuous) | Low RDS(on), high thermal efficiency | Handles high current draws with reduced heat—more thrust and reliability under load. |
| DSHOT300/600 Protocol | Fully digital, bidirectional ESC communications | Eliminates jitter and signal noise—consistent motor response even in high-vibration environments. |
| 200-Scale Current Sensor | On-board amperage monitoring | Real-time power usage data for smarter battery management and longer flight times. |
| Optimized Q_H_40_24_v0.19.2 Firmware | Tuned for performance and stability | Smooth, glitch-free throttle curves—confidence-inspiring control during aggressive flying. |
| 3–6S LiPo Support | Wide voltage compatibility | Flexibility to choose battery configurations that match your power and weight goals. |
| Lightweight & Compact (28 g) | Slim profile, low mass | Improves overall drone agility and flight time—critical for racing and freestyle. |
Why Fly Spark BLS 80A 4-in-1 ESC?
Maximized Performance: High-current MOSFETs and a precision MCU translate pilot inputs into instantaneous thrust.
Plug-and-Play Integration: Standard 30.5 × 30.5 mm mounting makes installation fast across most 5″-class frames.
Reliability Under Stress: Burst capability and robust thermal design keep you flying hard without ESC failures.
Data-Driven Tuning: Integrated current sensing and digital telemetry support fine-tuning in Betaflight or your favorite FC.
Key Features
4-in-1 Architecture: Integrates four 80 A ESCs into a single compact 30.5 × 30.5 mm board (4 mm mounting holes)
High-Performance MCU & MOSFETs
MCU: EFM8BB21F16G for precise throttle and brake control
Premium MOSFETs deliver up to 80 A continuous current per channel (90 A burst for 10 s)
Wide Voltage Range: Supports 3 – 6S LiPo batteries for versatile power options
DSHOT Telemetry: DSHOT300/600 digital protocol ensures jitter-free, bidirectional control
Current Sensor: 200 scale current sensing for accurate power monitoring
Optimized Firmware: Q_H_40_24_v0.19.2 for smooth throttle response and reliability
Ultra-Light & Compact: Measures 57 × 56 mm, weighs only 28 g—ideal for racing and freestyle builds
Enhance thrust, efficiency, and reliability in your next quadcopter build with Fly Spark’s precision-engineered BLS 80A 4-in-1 ESC.
