FlySpark by Anushakti Infotech Pvt. Ltd. proudly presents its high-performance Fiber Optic Cable Tray, meticulously engineered to deliver ultra-stable data and video transmission across long distances using single-mode G657A2 fiber. Designed for precision-critical operations, this product enables secure, high-speed connectivity for FPV drones, UAVs, aerial surveillance, and ground-to-air communication systems.

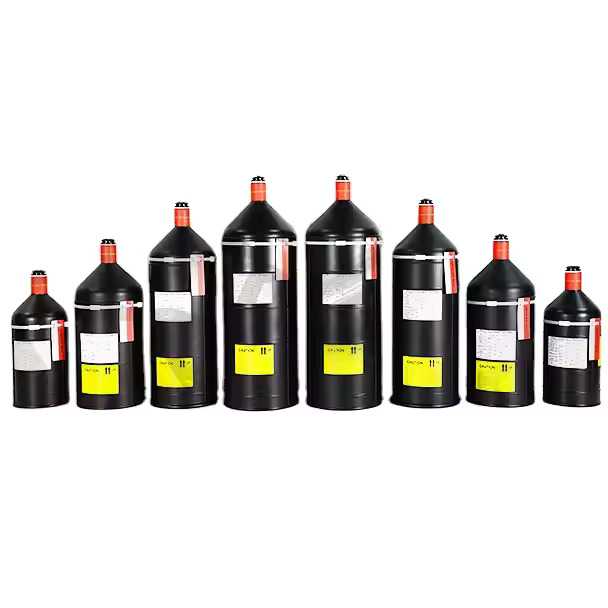

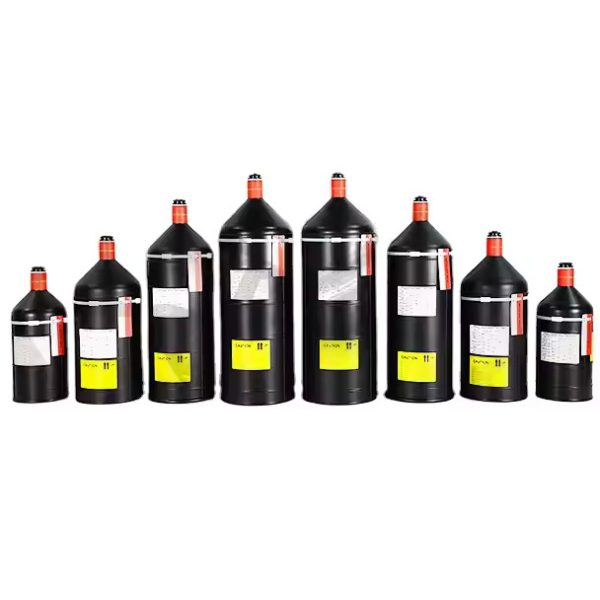

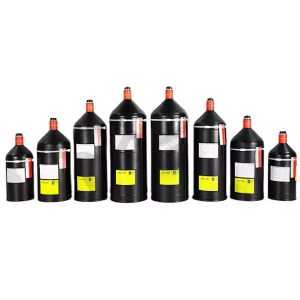

Available in length variants from 1km to 30km, the spool ensures low attenuation, high tensile strength, and robust outdoor performance — making it an ideal solution for defense-grade UAVs, research institutions, disaster response drones, and long-range FPV enthusiasts.
️ Whether you’re deploying fiber optic gyros, tethered drones, or long-range video feeds, FlySpark fiber trays offer the perfect blend of engineering excellence, reliability, and field-tested durability.
Key Features & Benefits:
✔️ Available in 9 Range Options: 1km to 30km
✔️ G657A2 Single-Mode Fiber: Ensures minimal light loss over long-distance data links
✔️ High Tensile Strength (>50N): Withstands strain in aerial applications
✔️ Low Attenuation: Excellent transmission with ≤5–8 dB loss (based on length)

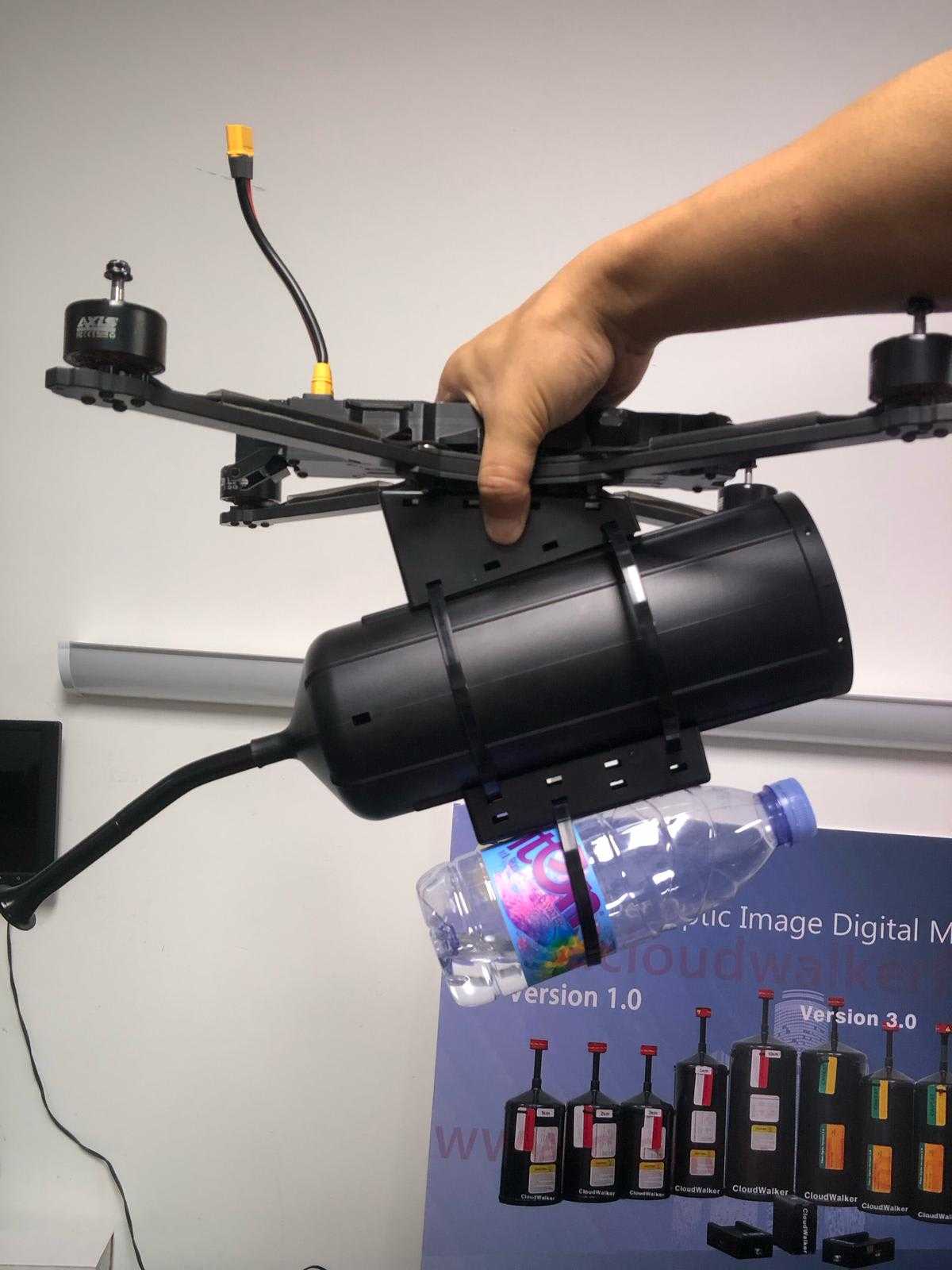

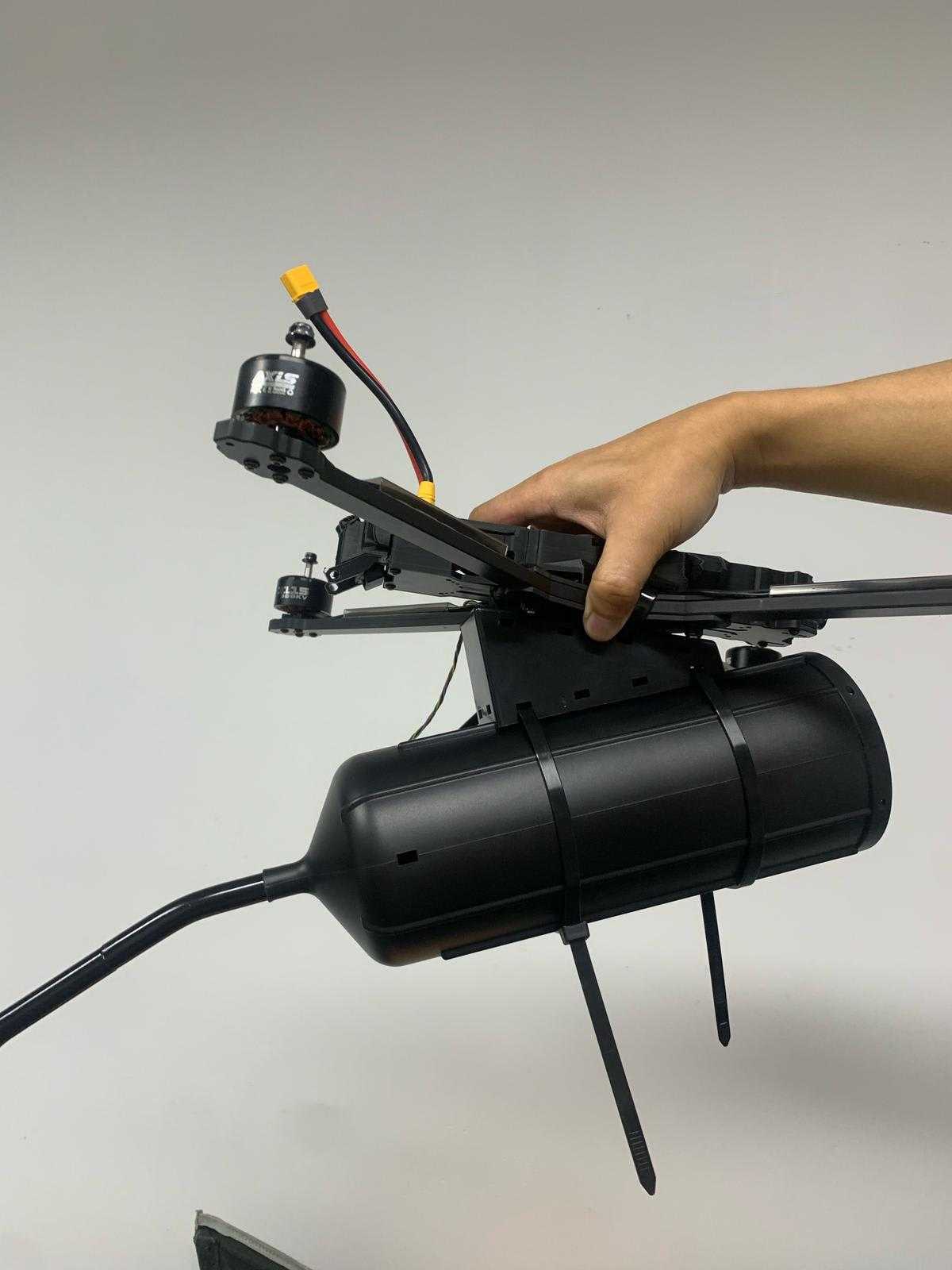

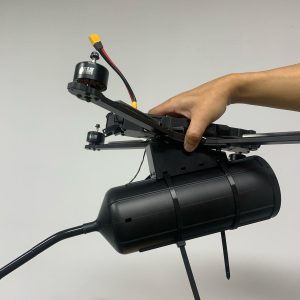

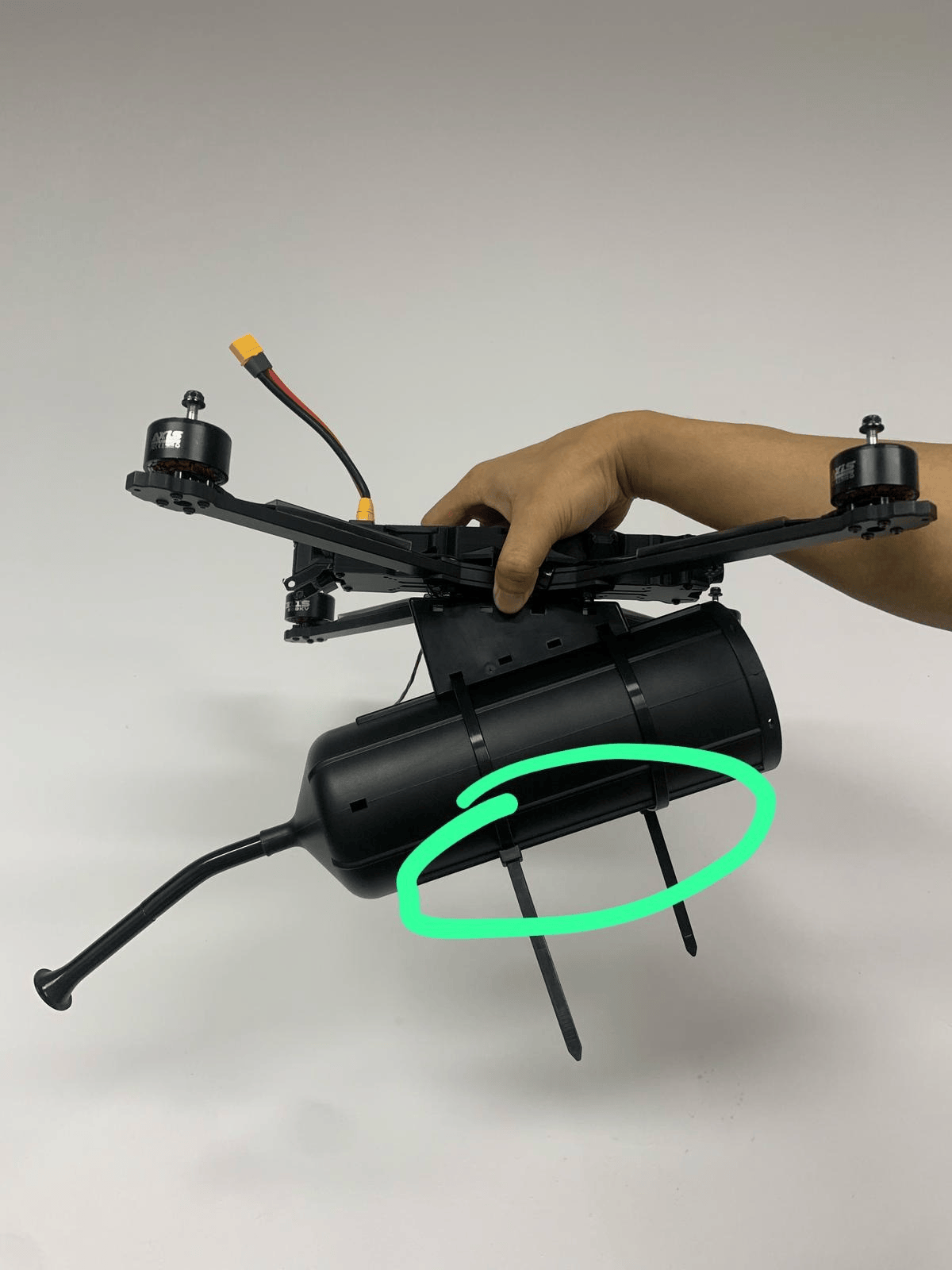

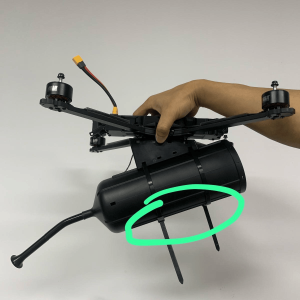

✔️ Compact & Lightweight Spool: Easy to mount on UAVs or ground stations
✔️ Aluminium Alloy Nozzle: Smooth, anti-friction exit port to prevent fiber damage
✔️ ABS/Carbon Fiber Body: Rugged and resilient to field conditions
✔️ Pre-integrated FC Connectors: Ensures quick and reliable fiber attachment
Ideal Use Cases:

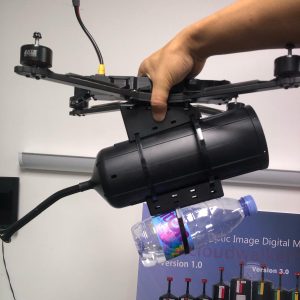

FPV & Long-Range Drone Tether Systems
UAV Ground-to-Air Optical Links
Aerial Photography & Live Broadcast Feeds
Defense & Military Surveillance
️ High-Altitude Research Balloon Data Relays
Drone-based AI & Sensor Network Deployments
Fiber Optic Guided Drone Experiments (Educational or R&D)
⚙️ Technical Specifications:
| Fiber Type | Single Mode G657A2 |
|---|---|
| Core/Cladding | 9/125μm |
| Wavelengths Supported | 1310nm / 1550nm |
| Attenuation Range | ≤5dB to ≤8dB (Based on length) |
| Connector Interface | FC |
| Fiber Diameter | 0.26mm / 0.43mm |
| Tensile Strength | ＞50N |
| Sheath Material | Resin/PVC |
| Nozzle Material | Aluminium Alloy |

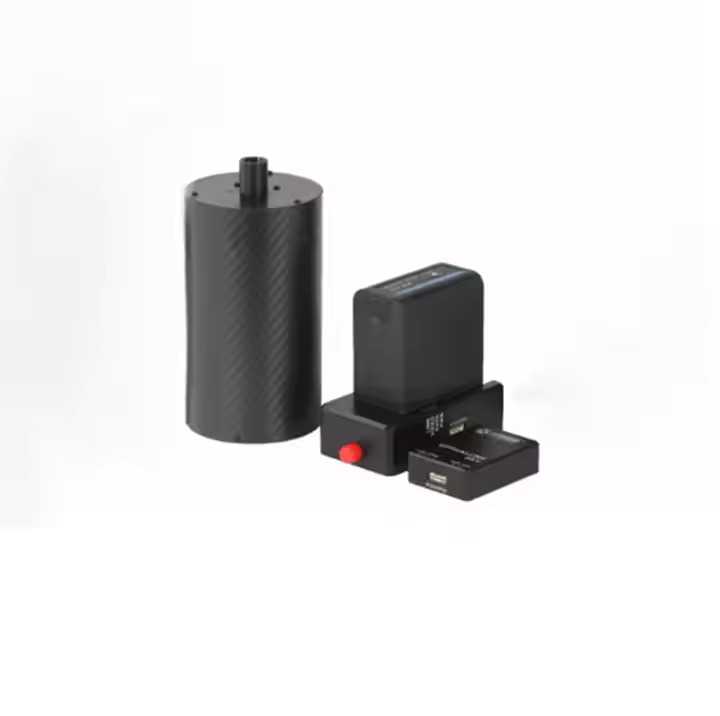

| Tray Shell Material | ABS (1km–25km), Carbon Fiber (30km) |
| Compatibility | FlySpark Opticallink SKY/GBD Modules, TTL/SBUS, Digital Video |
| Environmental Resistance | Dustproof, Shock Resistant, Outdoor-Ready |

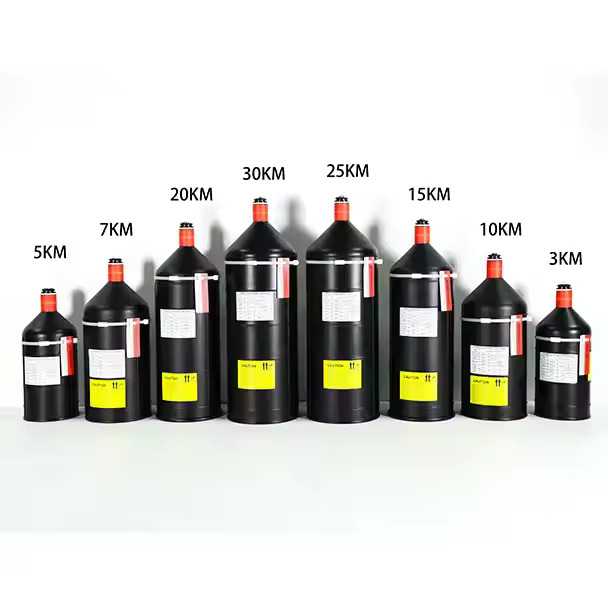

Variant-wise Physical Specifications:
| Length | Weight | Dimensions (D × L) |
|---|---|---|
| 1km | 0.41kg | 101.6mm × 274mm |
| 2km | 0.60kg | 101.6mm × 274mm |
| 3km | 0.80kg | 101.6mm × 274mm |
| 5km | 1.25kg | 101.6mm × 351mm |
| 10km | 2.45kg | 137mm × 390mm |
| 15km | 1.4kg | 101.6mm × 351mm |
| 20km | 2.0kg | 137mm × 390mm |
| 25km | 2.3kg | 137mm × 390mm |
| 30km | 2.9kg | 130mm × 460mm |
Technical Specifications:
| Feature | Specification |
|---|---|
| Fiber Length | 1100 meters (1.1KM) |
| Model | G657A2 Single-Mode |
| Attenuation | ≤5 dB (1310nm), ≤6 dB (1550nm) |
| Wavelength Supported | 1310nm / 1550nm |
| Fiber Core Diameter | 9/125μm |
| Shell Material | ABS plastic |
| Outlet Nozzle | Aluminium Alloy |
| Strain Resistance | ＞50N |
| Weight (with SKY end) | 0.41kg |
| Dimensions | 101.6mm (D) x 274mm (L) |
| Connector Type | FC Interface |
| Transmission Range | Up to 1km (with compatible module) |
| Compatible Use Cases | FPV drones, ground station link, industrial field testing, defense UAV |
